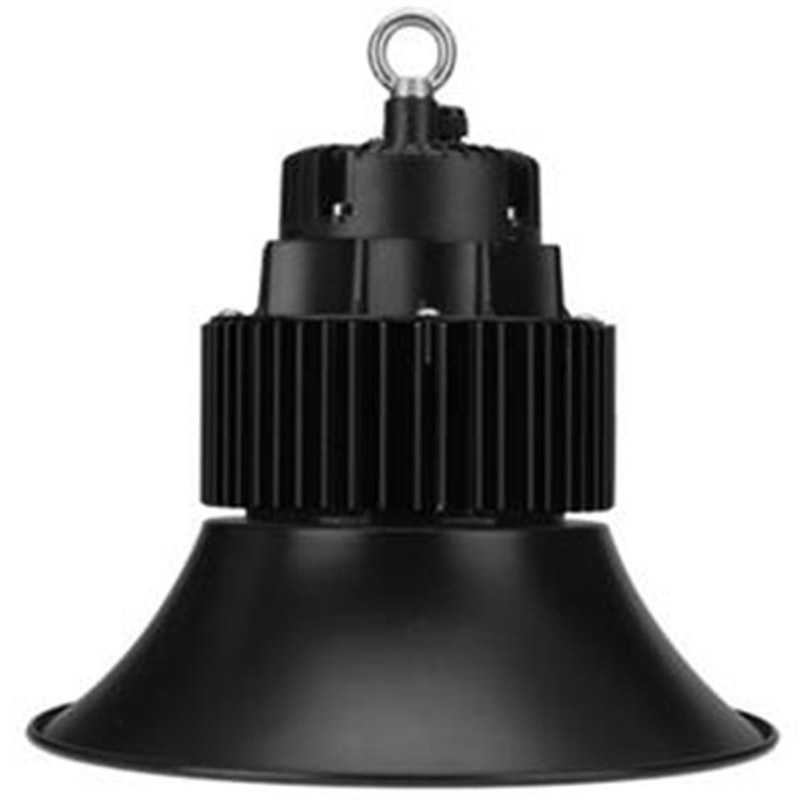

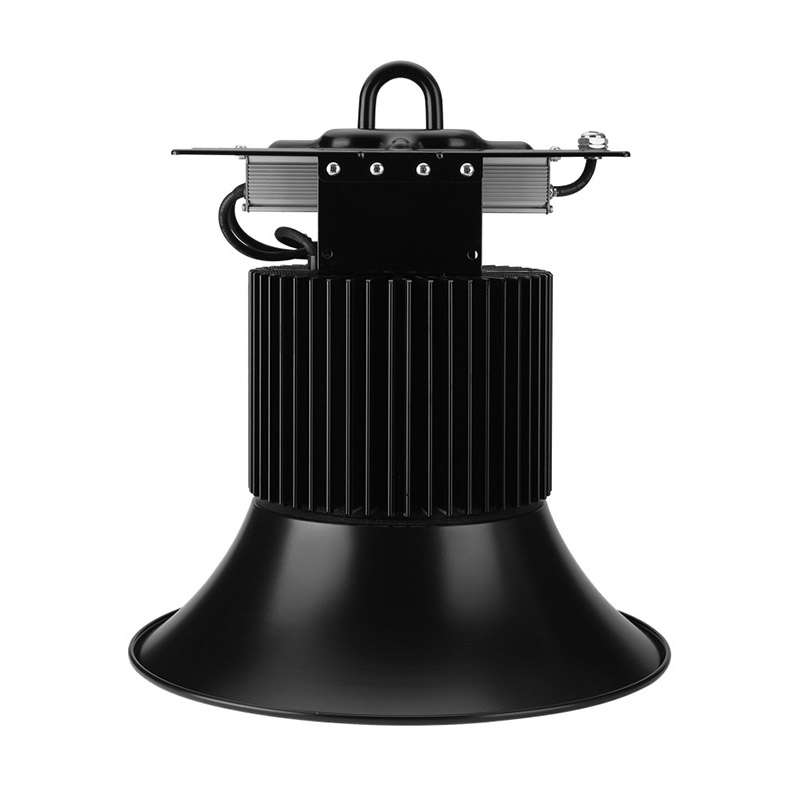

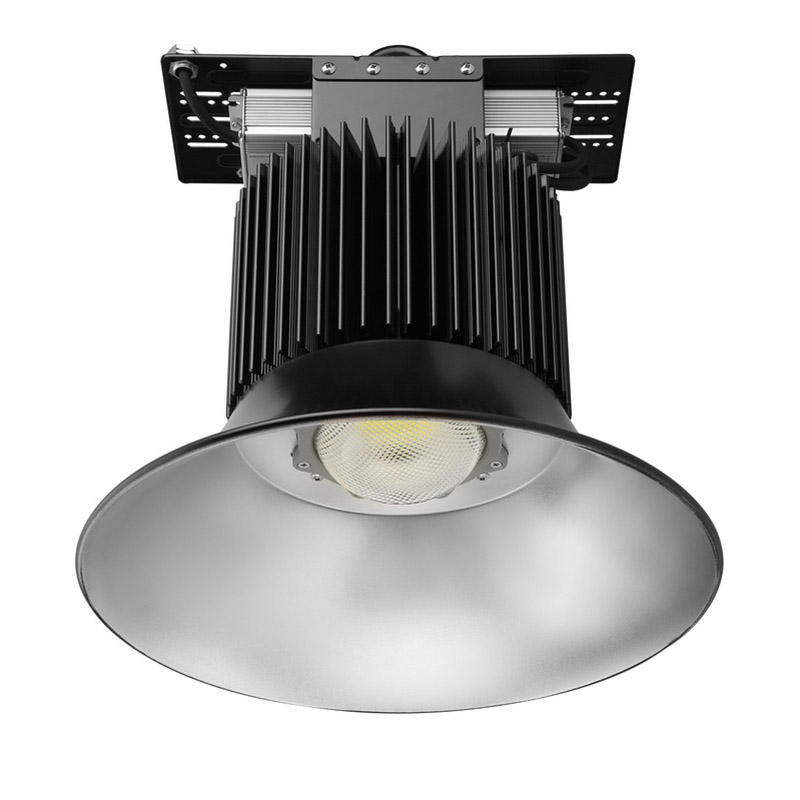

300W Led High Bay Lighting- Industrial waterproof explosion-proof outdoor mining lamp Parking lot station ceiling light

  • Prisma glass lens, glare free and no ground shadow;

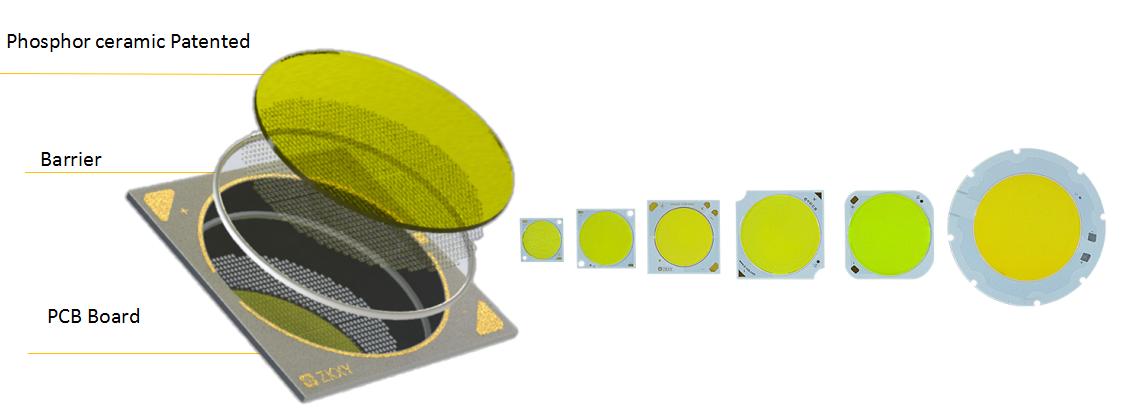

  • Phosphor ceramic COB with multi-phase changing heat sink, maintenance-free;
  • Water&dust proof : IP65;
  • Suitable for factories, warehouses, gas stations, etc., where are dusty, humid, and have the high ceilings.

Additional information

Product Description



The 300W LED High Bay Lighting is industrial and outdoor lighting; it is solid, safe, and offers high performance for use in factories, warehouses, and other such areas. The M series of lamps guarantee high illumination and durability and is designed especially for industrial facilities, large shops and stores, mines, parking lots, and service stations. They are protected for use under hazardous conditions, hence explosion proof and the waterproof and dustproof (IP65) construction of the devices ensures that the device will operate continuously under all possible conditions. No matter whether it is placed on very tall walls or outdoor stations, this high bay light provides an excellent light source. Therefore, it meets large industrial lighting application requirements.



Applications:

  • Factories: Perfect for cases involving big factory floors, it provides bright, consistent light, which can improve productivity from reduced accidents due to poor lighting.
  • Warehouses: 300W Led High Bay Lighting is ideal for high-ceilinged warehouses, as it provides heavy, glare-free lighting that assists in increasing visibility and productivity.
  • Mining Sites: Safely made for mining industries and intended for explosion possibility, this lamp can guarantee intense lighting even in dangerous zones.
  • Parking Lots: Provide sufficient intense light to make the parking space safe and secure for vehicles and other people.
  • Gas Stations: The lamp design is waterproof and dust-resistant, making it perfect for use in petrol stations. Thus, it will effectively work in companies located outside.

LIGHT SOURCE



PHOTO ELECTRIC PARAMETER

Item No. Power

Input Voltage

CCT

CRI Lumen Efficacy Beam Angle
HBA100 100W AC90 ~ 305V 2200~ 6500K 70~80ra 11750lm 110~140lm/w 90°,120°
HBA150 150W AC90 ~ 305V 2200~ 6500K 70~80ra 17625lm 110~140lm/w 90°,120°
HBA200 200W AC90 ~ 305V 2200~ 6500K 70~80ra 23500lm 110~140lm/w 90°,120°
HBA250 250W AC90 ~ 305V 2200~ 6500K 70~80ra 29375lm 110~140lm/w 90°,120°
HBA300 300W AC90 ~ 305V 2200~ 6500K 70~80ra 35250lm 110~140lm/w 90°,120°



DIMENSIONS DRAWING

Model No.: HBA100 & HBA150
