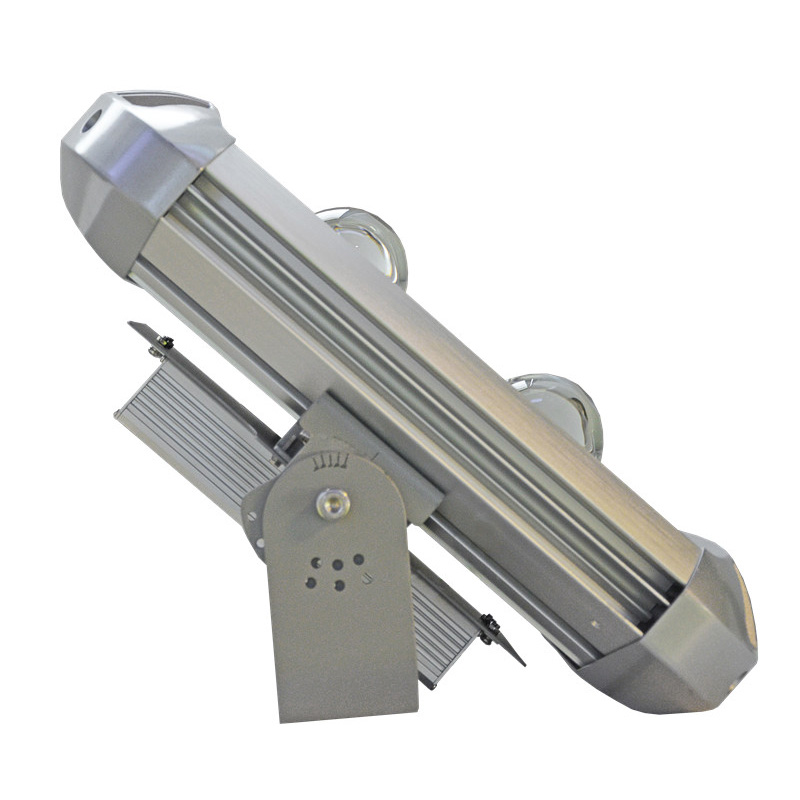

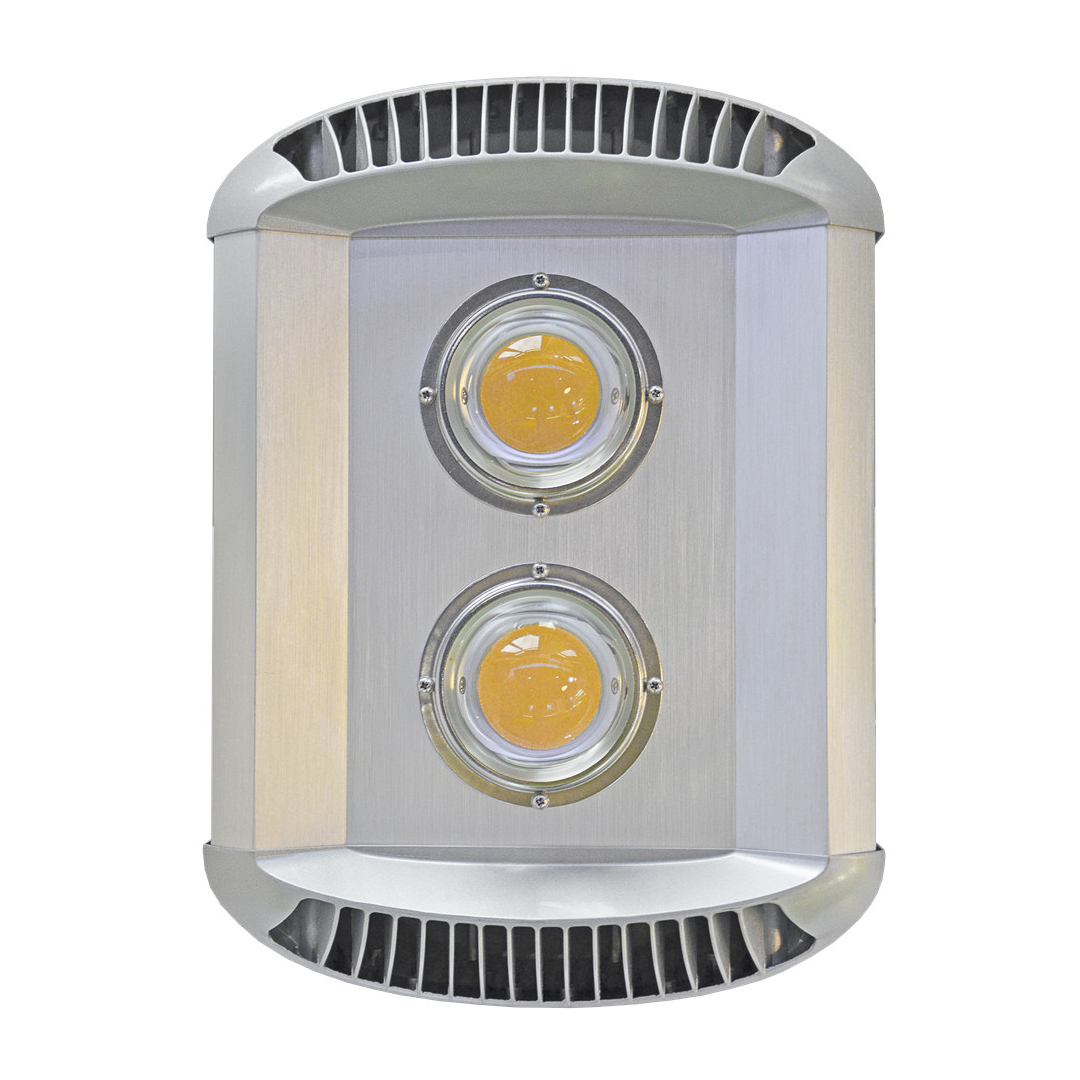

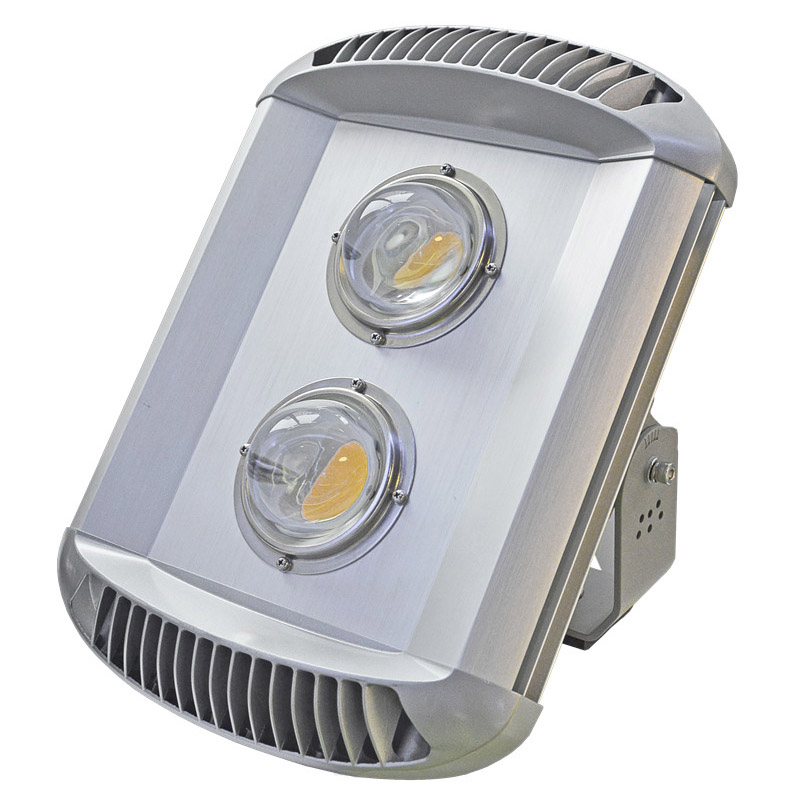

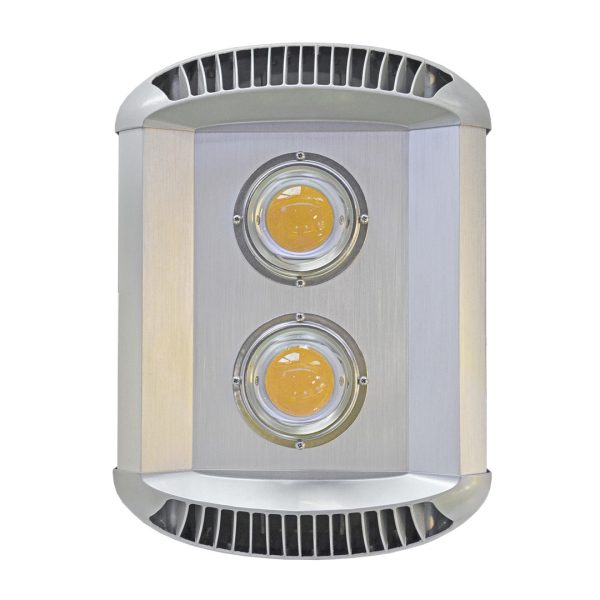

300w Led Light Tunnel

300w Led Light Tunnel, 39000lm, Suitable For Tunnel Lighting And General Flood Lighting

  • Versatile Light Distribution: The high boron glass lens can have various light distributions and is used for streets, tunnels, and other floodlighting.

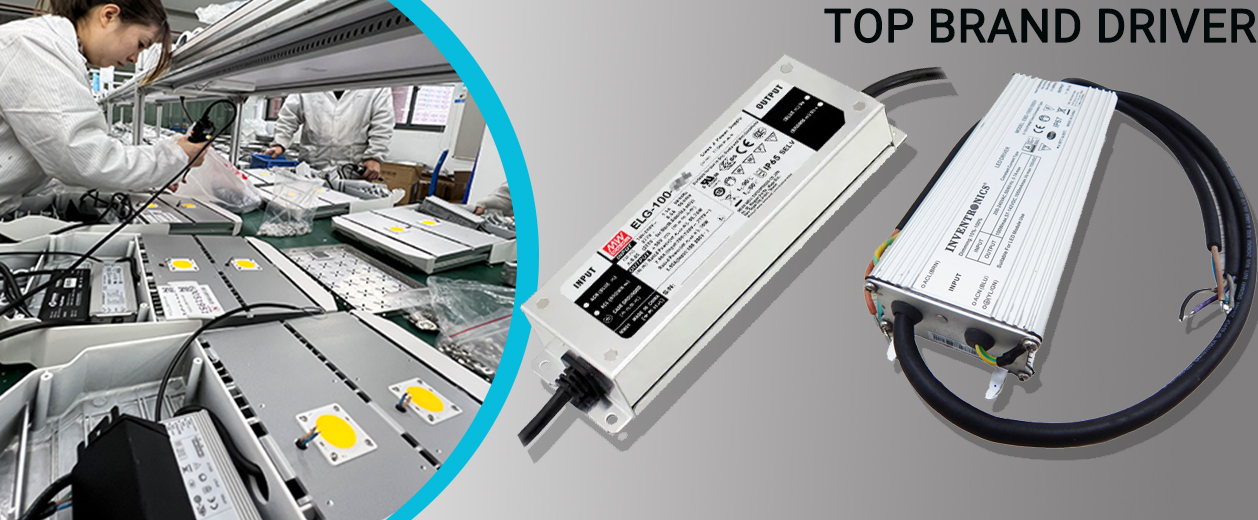

  • Reliable Drivers: Inventronics / Meanwell, top-brand drivers: Anti-short circuit and over-voltage protection provide high reliability for built-in and external drivers.
  • Durable Housing Structure: Multiple compact housings made from AL6063 aluminum heat sinks offer durability and efficient heat dissipation, and they have a protection rating of up to IP65.
  • Intelligent Control Compatibility: It has been built to work with intelligent control systems to provide even more options and easily plug into intelligent lighting systems.

Additional information

Request A Quote
Whatsapp

Product Description

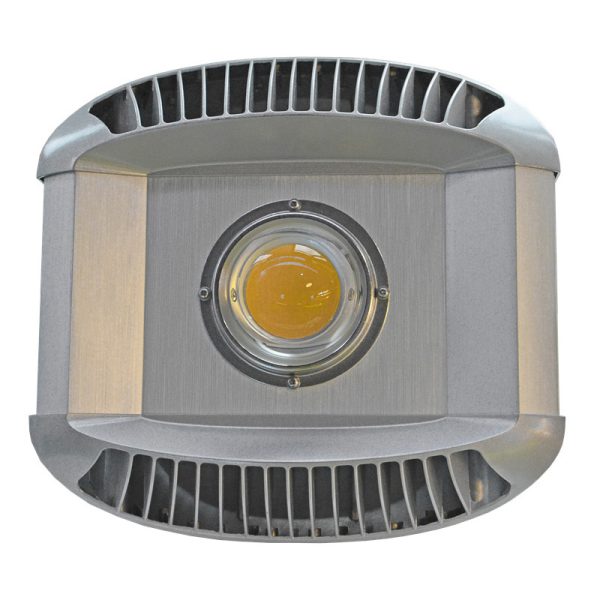

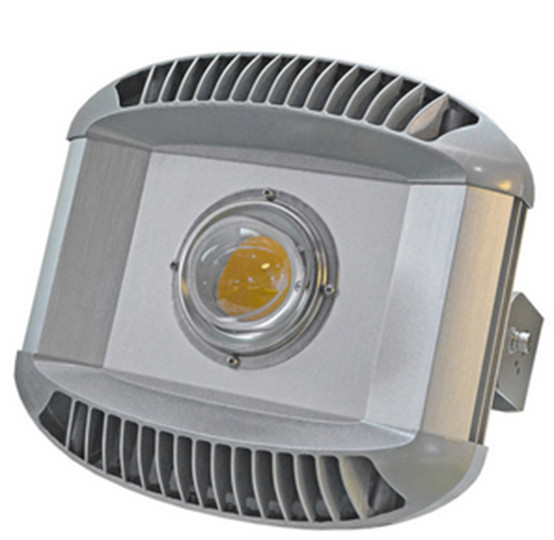

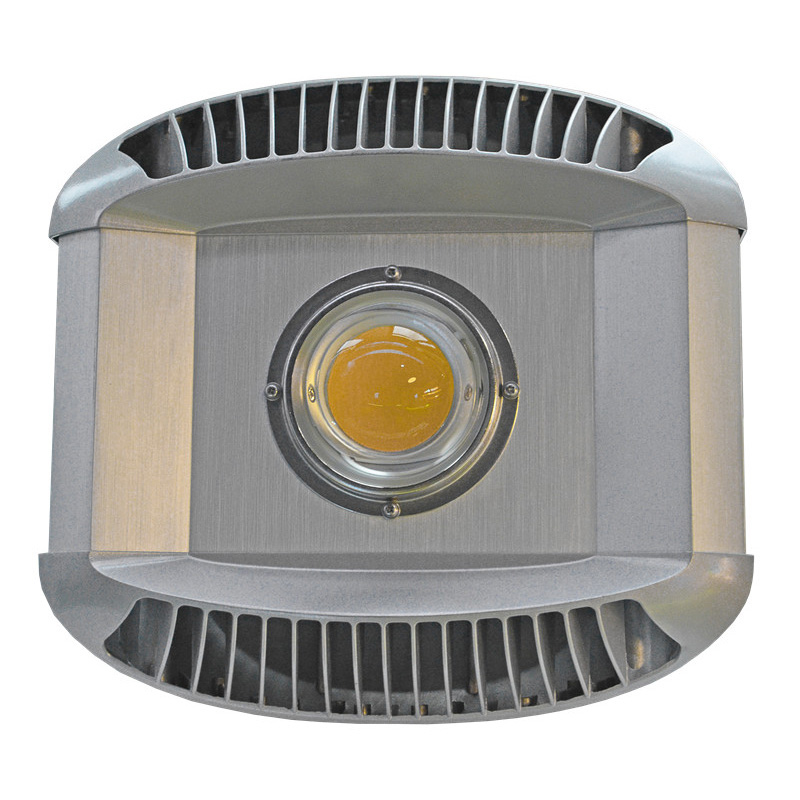

The 300w Led Light Tunnel LM Durable – K-COB is a highly efficient transport lighting system used in tunnels and underpasses. Built for operating in complex environments, this light produces a stunning 39,000 lumens of white, soft light, thus adding visibility and safety to the drivers. 300w Led Light Tunnel has a small, stylish body that is highly resistant to the environmental conditions it is exposed to once installed; due to LED technology, it is suitable for tunnels, streetlights, and other floodlighting applications. There are two tunnel light sets: the K-COB tunnel light, which is impact-resistant and has an IP65 rating for guaranteed durability and energy efficiency even in harsh conditions.

What is the importance of lighting in tunnels?

Tunnel lighting is essential since it is exposed to challenging conditions, including traffic, weather, and pollution: water, dirt, road salt, exhaust fumes, etc. Such aspects call for lighting fixtures capable of withstanding corrosion while still capable of delivering their maximum performance for a long time. The major problem in designing tunnel and underpass lighting is to generate a homogeneous visual scene of the roadway for the driver all over the tunnel and underpass both in daylight and dark conditions.

The light should be distributed correctly to minimize intense light fluctuations that may affect driver vision. Hence, it is essential to obtain the right ground lux level so that the safety and comfort of all users can be in place.

The K-COB Tunnel Light has been developed under detailed professional design by a team of lighting engineers to address these challenges. Using the phosphor-ceramic light source, this model has been certified by four international invention patents and is approved with an expected life span of 55,000 hours. The AL6063 aluminum heat sink is made of titanium to provide the best heat sink and performance reliability. The high boron glass lens is available for various light distribution levels, and its dust-resistant, high reliability in tunnel applications is outstanding.



PRODUCT FEATURES

● AL6063 Heatsink
Customized for KCOB, dissipate the heat efficiently		 ● Patented Phosphor Ceramic Led Light Source
Exclusive single phosphor-ceramic light source, 55,000 hrs lifespan, LM-80 approved, and Invention patent listed in USA/Korea/Japan, and China.
● High Boron Glass Lens
Various light distribution by high boron glass lens, suitable for street/tunnel lighting and regular floodlighting		 ● Private Molding

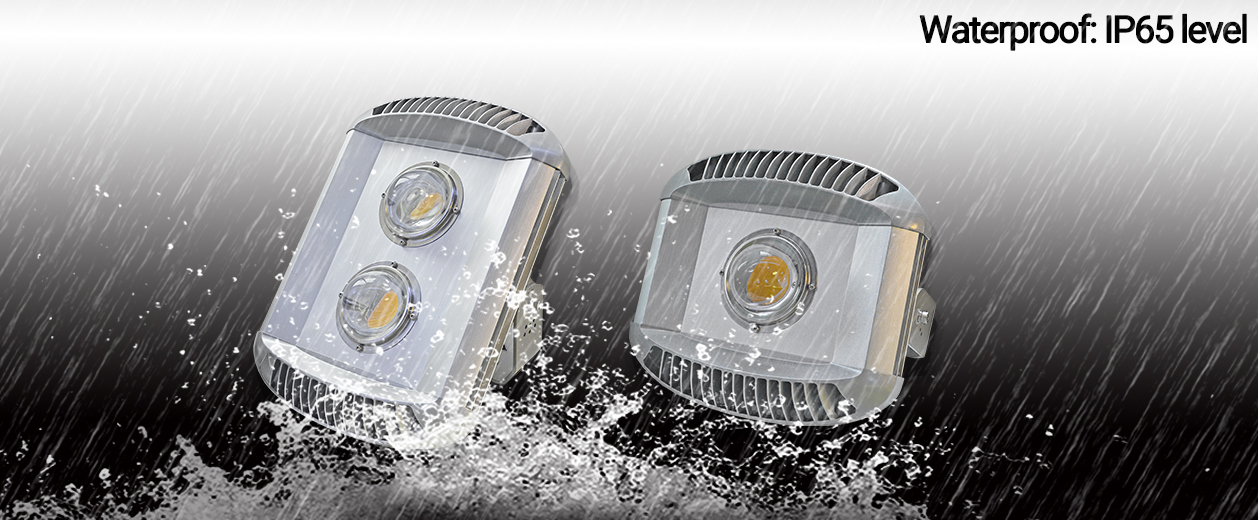

Compact structure with modern outlook design,IP65 standard.

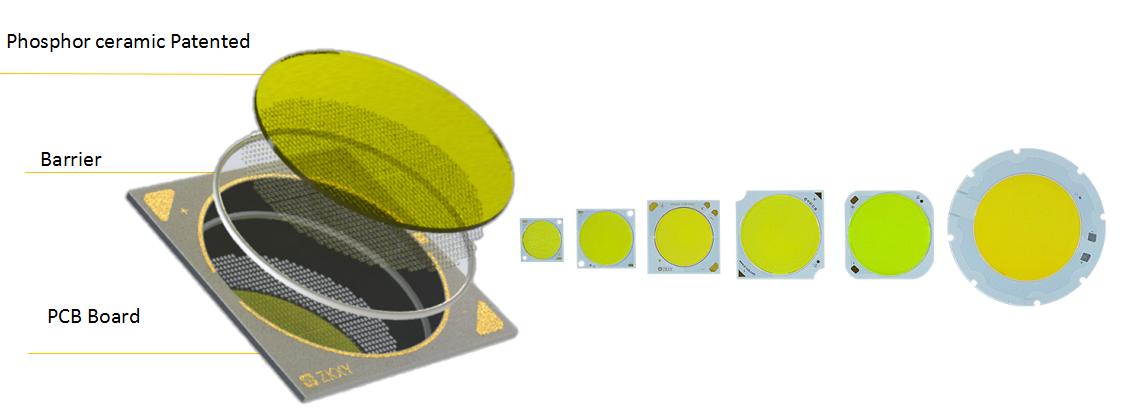

LIGHT SOURCE

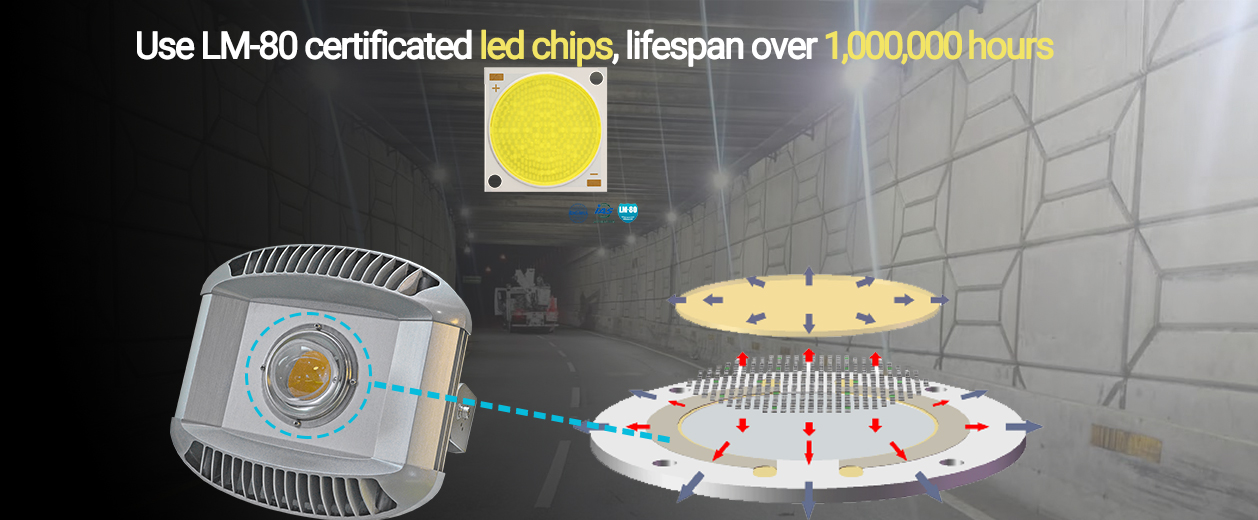

K-COB is a unique LED packaging pattern — by using exclusive Phosphor ceramic to replace traditional silicone and phosphor, this brand new generation LED light source brings better reliability and extremely low lumen decay.

100W-300W tunnel lights LED chips are made by our exclusive materials: phorsphorus ceramic  And the “dual channel heat-sinking structure” guarantee the the durability for industrial and outdoor application





• Compact in size, attractively styled contemporary design, rugged and dependable.

• Universal design ,One-piece housing. Easy to install and service.

• Thermal shock- and impact-resistant glass lens standard.

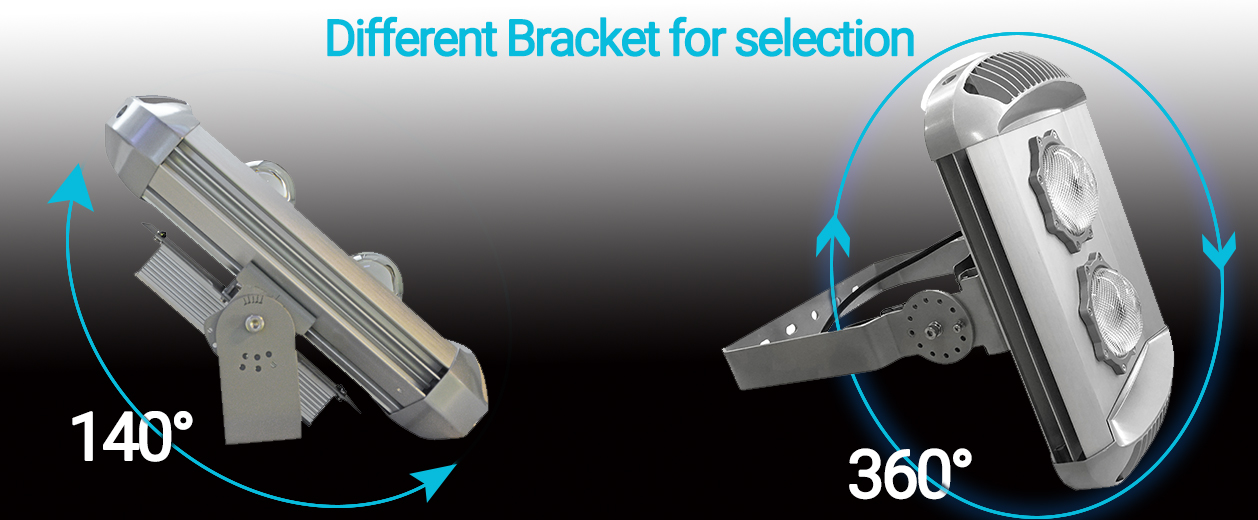

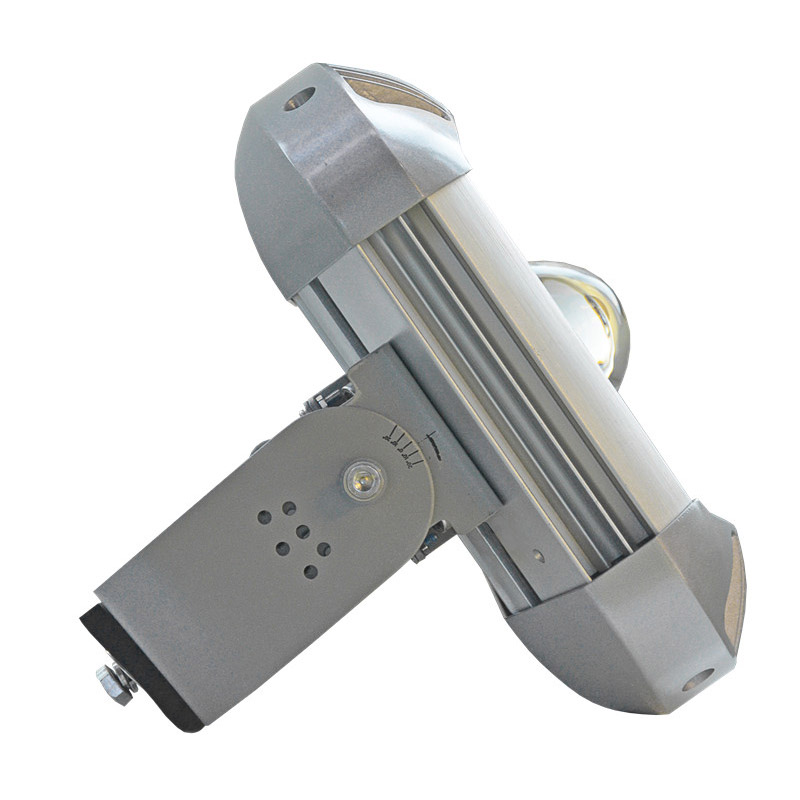

•Floodlight Mounting: Rotate yoke up or remove. And two optional bracket (up and down 140° /360°）





PHOTO ELECTRIC PARAMETER

Item No.

Power

Input Voltage

CCT

CRI

Lumen

Efficacy

 Beam Angle
TLA100 100W AC90 ~ 305V 2200~ 6500K 70~85ra 13000lm

120~150lm/W

60°,90°,120°
TLA200 200W AC90 ~ 305V 2200~ 6500K 70~85ra 26000lm

120~150lm/W

60°,90°,120°
TLA250 250W AC90 ~ 305V 2200~ 6500K 70~85ra 32500lm

120~140lm/W

60°,90°,120°
TLA300 300W AC90 ~ 305V 2200~ 6500K 70~85ra 39000lm

120~140lm/W

60°,90°,120°



K-COB TUNNEL LIGHTING’S APPLICATIONS：



  • Tunnels and Underpasses: Provides stable and intense lighting to increase safety in unfavorable conditions.
  • Highways and Roadways are best suited for illuminating important regions to enhance light conditions and control traffic flow.
  • Bridges and Overpasses: Most are sure of a weatherproof light source when it is necessary to navigate the dark.
  • Parking Structures: They provide excellent and long-lasting illumination necessary for security and lighting up the facility for easy navigation.
  • Industrial Facilities: They are ideal for warehouses, manufacturing plants, and loading docks.

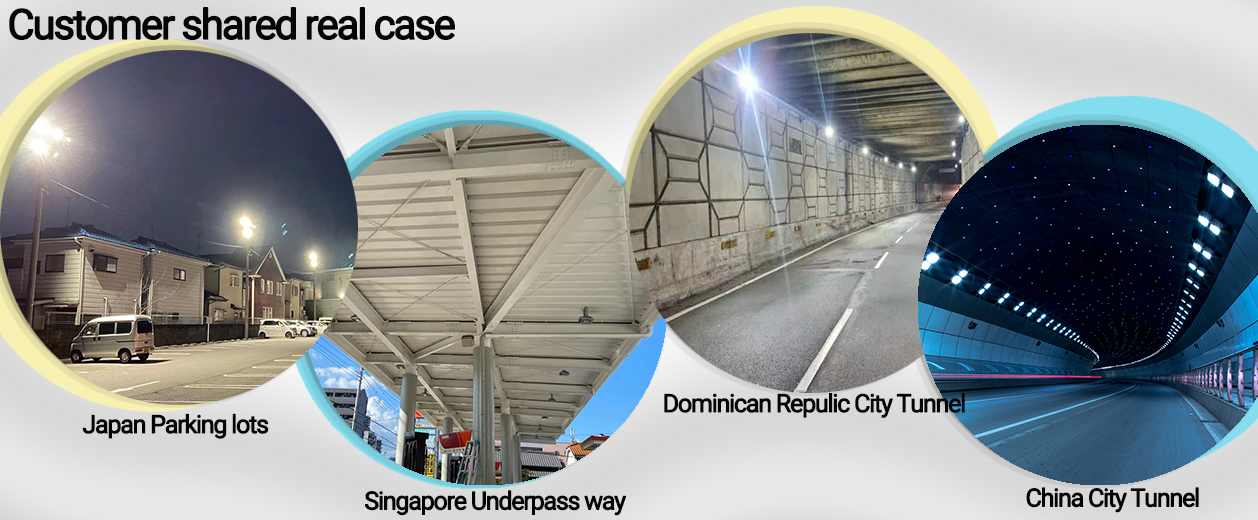

THE REAL CASE VIDEO FROM OUR CUSTOMER, FYI

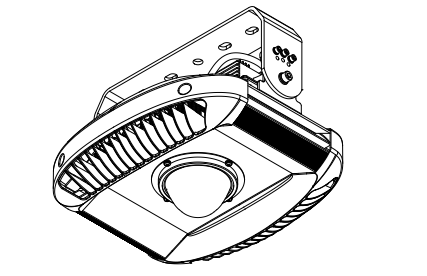

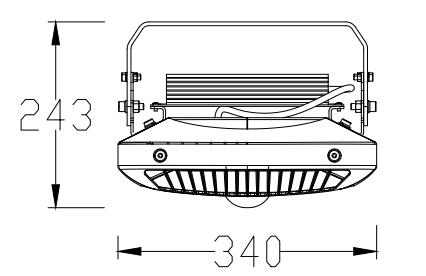

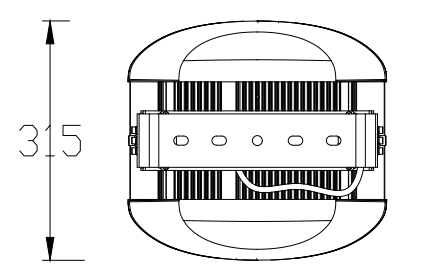

DIMENSIONS DRAWING

Model No.: TLA100



HOW MUCH DOES TUNNEL LIGHTING COST?

The cost of tunnel lighting depends on the brand, quality, and requirements of the project in progress. Some of the parameters, like the width and the length of the tunnel and the requirement of the level of illuminance, will dictate the cost of putting up the tunnel. K-COB is a professional lighting designer and manufacturer; we are focused and dedicated to providing our customers with high-quality and relatively cheap lighting solutions. For more information about the prices and to obtain more individual offers, please do not hesitate to contact us.
