90 Led Cob Chip Beads 400W 500W 600W 700 Watt Led Light

  • Small light-emitting size(LES), warm led lighting, lighting ra;
  • Good heat dissipation： patented “dual heatsinking channel” structure, guarantee the thermal performance.
  • High lumen intensity, LM80 approved; 4000k light color,cri 80
  • Good resistance to force impact, temperature, humidity and PH change ;
  • Suitable for high mast light, sports light and other long distance lighting fixture;

Additional information

Request A Quote
Whatsapp

Product Description

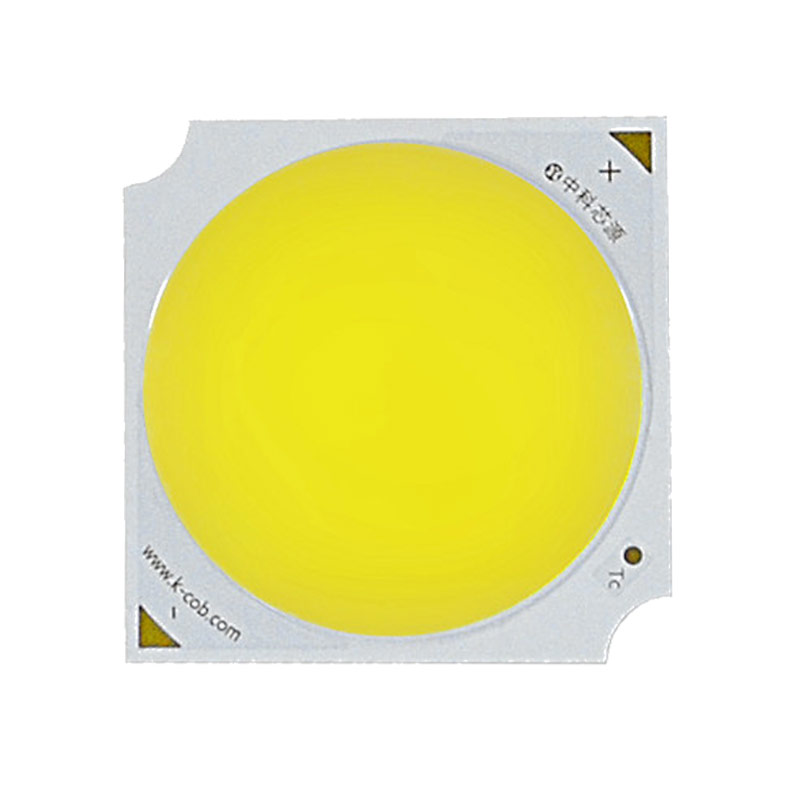

90 LED COB Chip Beads 400W, 500W, 600W, 700 Watt LED Light: High-Efficiency Lighting Solutions

The 90 Led Cob Chip Beads, available in 400W, 500W, 600W, and 700W models, provides powerful, energy-efficient lighting tailored for demanding environments. Each model integrates advanced phosphor ceramic COB (Chip on Board) technology, delivering high luminosity, superior color rendering, and long-lasting performance. These LEDs are ideal for large-scale applications such as stadiums, industrial facilities, and outdoor installations where consistent, high-intensity lighting is essential.

SPECIFICATION

Item No.

Rated Power(W)

Forward Voltage Vf(V)

Rated Currency IF(mA)

Max Input currency(mA)

CRI(Ra)

Color Temperature(K)

Efficiency Im/w

Based on 70ra

XY-L5640

400

124

3000

3150

70/80/90

2000-6500

165lm/w

XY-L5650

500

124

3700

4050

70/80/90

2000-6500

160lm/w

XY-L5660

600

124

4300

4800

70/80/90

2000-6500

155lm/w

XY-L5670

700

124

5300

5500

70/80/90

2000-6500

150lm/w

Key Specifications

  • Model Options: The series includes four models—400W, 500W, 600W, and 700W—allowing flexibility for various lighting requirements.
  • Forward Voltage: Each model operates at 124V, ensuring stability and efficiency in high-power applications.
  • Current Capacity: Rated currents start from 3000mA for the 400W model and increase to 5300mA for the 700W version, with each model designed to handle peak demands with a maximum input current range up to 5500mA.
  • Color Temperature Range: Offering versatile lighting from 2000K (warm light) to 6500K (daylight), this series suits multiple environments and lighting preferences.
  • High Efficiency: With luminous efficacy reaching up to 165 lm/w, these lights maximize brightness while minimizing energy consumption. Efficiency levels are optimized across the models—400W (165 lm/w), 500W (160 lm/w), 600W (155 lm/w), and 700W (150 lm/w).
  • Customizable Design: Sizes and circuit configurations are customizable, allowing for adaptability in specific installations.

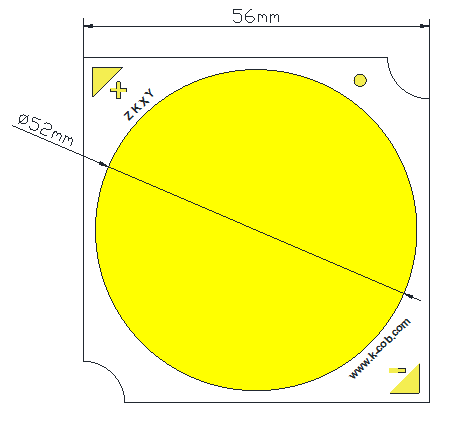

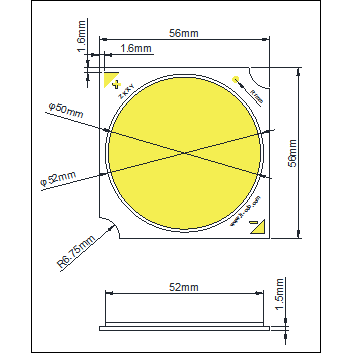

DIMENSIONS DRAWING























Size & Circuit is customizable based on the With high-quality die-cast aluminum housing, these LED lights are designed to endure harsh weather conditions, ensuring durability and reliability. The 90 LED COB Chip Beads series is an excellent choice for those seeking robust, high-performance lighting that delivers clear, glare-free illumination, energy savings, and longevity in both commercial and industrial settings.requirement
