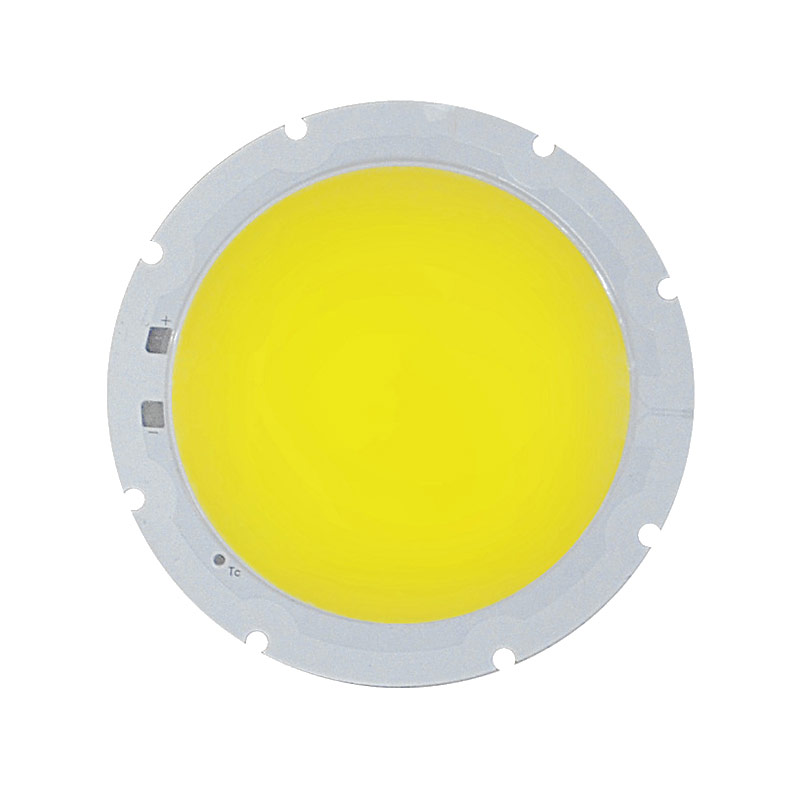

LED COB Chip 6500K CRI 90 High Power Lighting Fixtures 1200W XY-L75 SERIES

  • High power with small LES (light-emitting size), perfect option for long range lighting;
  • Good heat dissipation: unique combination of Copper PCB&phosphor ceramic,guarantee the thermal performance;
  • Good reliability: resistance to force impact, temperature, humidity and PH change
  • color temperature led:2700k led,leds 3000k;leds 4000k,6000k lighting,
  • LM-80 Passed
  • Suitable for high power lighting fixtures, such as sports light, search light, TV&film light ect.

Additional information

CRI(Ra)

70/80/90
Rated Power

50~300w
CCT(K)

2000~6500
Lighting

165lm/w
Request A Quote
Whatsapp

Product Description

LED COB Chip 6500K Cri SPECIFICATION

Item No. Rated Power(W) Forward Voltage Vf(V) Rated Currency IF(MA) Max Input Currency(MA) CRI(Ra) Color Temperature(K) Efficiency Im/W
Based On 70ra
XY-L75120 1200 333 3600 3900 70/80/90 2000-6500 165lm/w
  • Brand: K-COB
  • Rated Power: 1200w
  • Forward voltage:333v
  • Rated currency: 3600mA
  • CR:70ra,80ra,90ra
  • Efficiency:150lm/w
  • Temperature Color: Warm White (3000~3500K), Cool White (6000~6500K)

The LED COB Chip 6500K CRI is a state-of-the-art lighting solution designed for efficiency and durability, perfect for a wide range of applications. With a rated power of 1200W and a forward voltage of 333V, this LED chip offers an impressive performance that meets the demands of various environments. It operates with a rated current of 3600mA and a maximum input current of 3900mA, ensuring optimal functionality while maintaining energy efficiency.

One of the standout features of the XY-L75120 is its exceptional Color Rendering Index (CRI) options of 70, 80, or 90, allowing for accurate color representation in any setting. The chip also provides versatility in color temperature, available in warm white (3000-3500K) and cool white (6000-6500K) options, making it suitable for different lighting needs and preferences. With an efficiency rating of 165lm/W based on a 70Ra standard, this chip is designed to maximize luminosity while minimizing energy consumption.

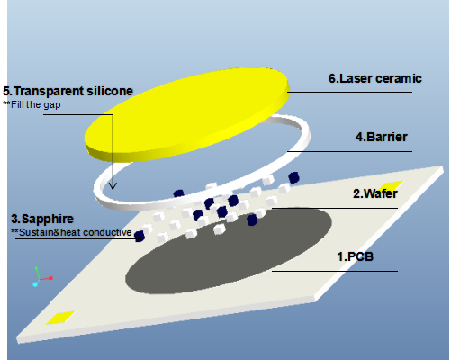

We Use Special Laser Ceramic（Patented）As Core Packing Material, And Packaging With Our Exclusive 3D Packaging Pattern: Using Particular Sapphire As Sustainment&Heat Conductive Path.

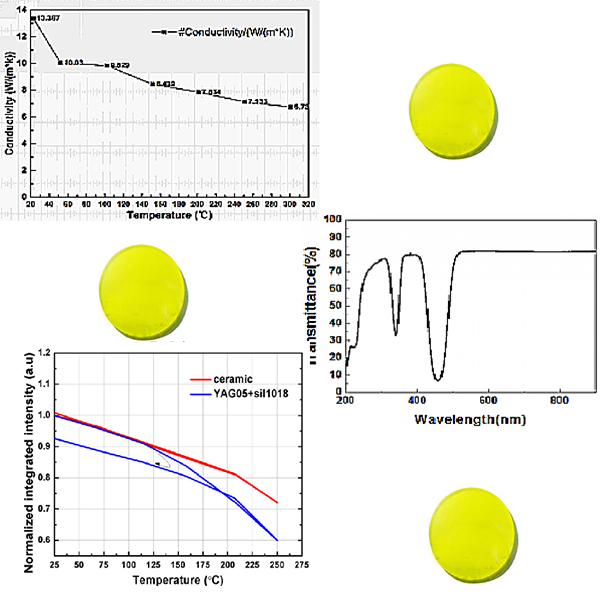

Advantages Of Laser-Ceramic:

  • One of the main advantages of the laser ceramic is a high heat conductivity rate: 13.367W/m.k, 75 times of traditional phosphorous powder (YAG05+sil1018).
  • Small lattice spacing and near single molecule  structure will bring less lumen loss and higher reliability;
  • Hard surface, impact-proof, and also good resistance to temperature& acidity, and alkalinity change.

At the core of the K-COB technology is a patented laser ceramic material, which serves as an innovative packing solution. This material boasts a remarkable heat conductivity rate of 13.367W/m.k, which is 75 times greater than traditional phosphorous powders. This ensures less lumen loss, higher reliability, and improved thermal management. Additionally, the laser ceramic’s hard surface provides excellent resistance to impacts, temperature fluctuations, and chemical changes, making it a robust choice for any application.

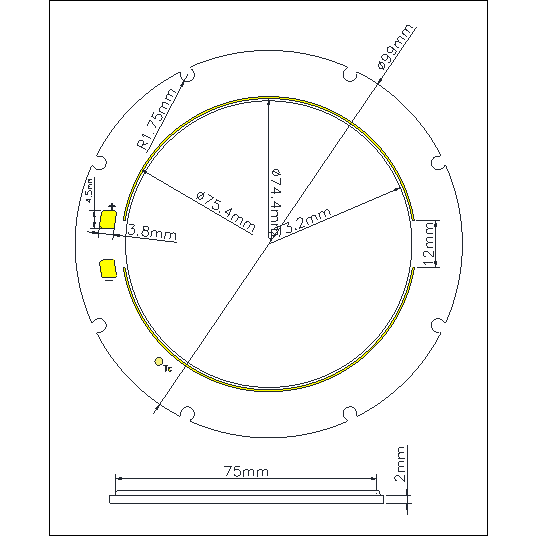

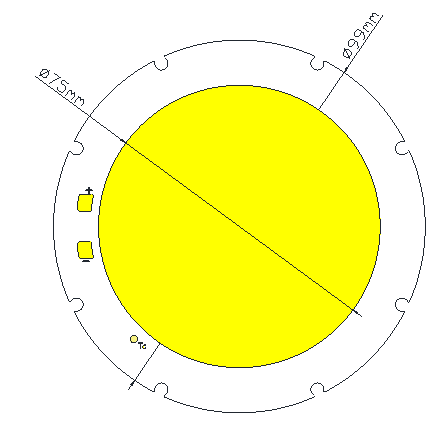

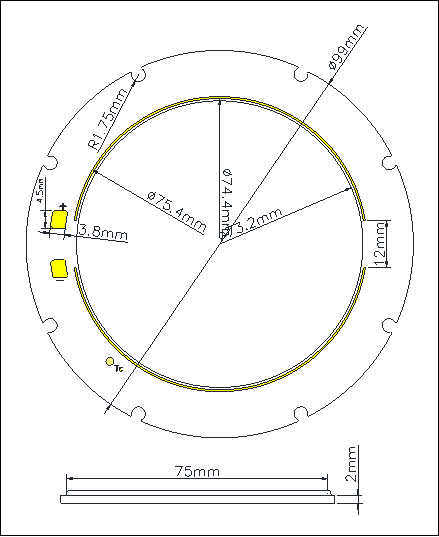

DIMENSIONS DRAWING

LED COB Chip 6500K cri LED COB Chip 6500K cri

*Size & Circuit is customizable based on the requirement

LED WORKSHOP

Furthermore, the XY-L75120’s design includes customizable sizes and circuits to meet specific project requirements, making it a flexible and practical solution for various lighting applications. Whether you need powerful illumination for industrial, commercial, or residential use, the K-COB XY-L75120 COB LED chip delivers quality and performance that you can trust.

*Size & Circuit is customizable based on the requirement
