LED Search Light -High Power 300w Waterproof Long Range Irradiation

WHAT DO MARINE SEARCHLIGHTS DO?

The K-COB Marine LED search light is an innovative product of illumination in marine settings with long-distance lighting, which is vital in night navigation and conducting search and rescue operations. This searchlight is essential for any vessel plying through the dark rivers, lakes, and seas. It is used in almost all outdoor facilities, such as boats, dock ports, and storage areas, and mainly where visibility is critical during weather.

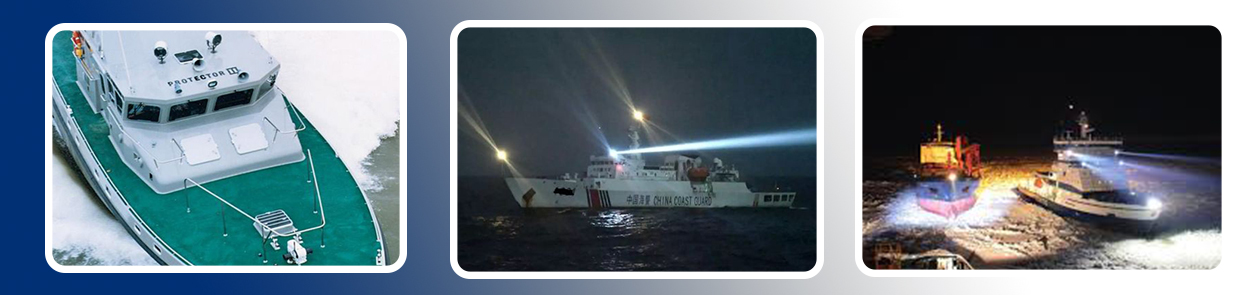

In sailing vessels, the LED search light is usually mounted on top of the wheelhouse at the front of the boat to illuminate the foreground during the voyage. The company has, therefore, worked hard to ensure that it is strong and incorporated the latest technology to be useful for both critical and leisure use in maritime.



HOW TO CHOOSE THE CORRECT MARINE SEARCHLIGHT?





 Therefore, when shopping for marine searchlights, one faces many choices, making the selection process tiresome. Here are vital factors to consider:



• Quality and Reliability: Material quality of the searchlight fixture, taking the page as primary importance. It is essential to understand that bulbs used in traditional stories—the xenon and halogen bulbs—are comparatively more susceptible, with higher failure rates coupled with the fact that they offer fragile designs. On the other hand, LED light sources are far more reliable than shipping companies because they last longer and provide consistent light throughout the voyage.



• Instant On-Off Functionality: In lost or rescue situations where one must draw attention to oneself or when one sees a rescue target or a rock invisible in the dark but appearing in the morning light, switches must be found on the light immediately. Unlike traditional searchlights, which may take some time before the bulb comes to full brightness, LED searchlights provide instantaneous illumination to place you on standby status.



• Focused and Clean Beam: For them to be effective, a searchlight should ideally throw a clear light indicating the focus area without lighting up other areas that should not be bright. This light spills over and can light the complete deck, creating nuisances and disturbances to the ongoing operations on the deck. This is minimized in well-designed searchlights where light is directed to precisely the right place where it is needed.

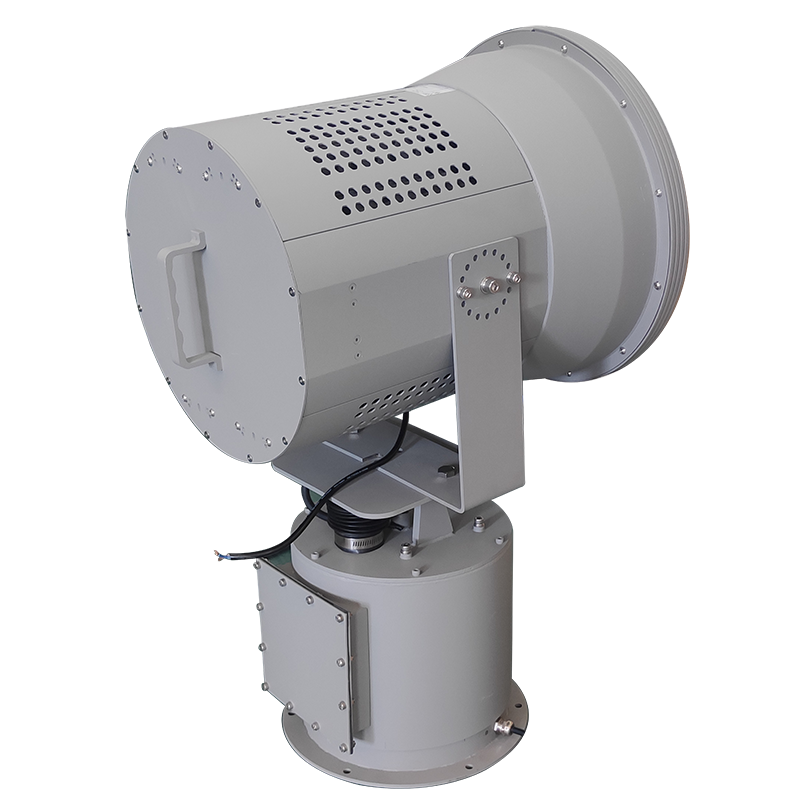

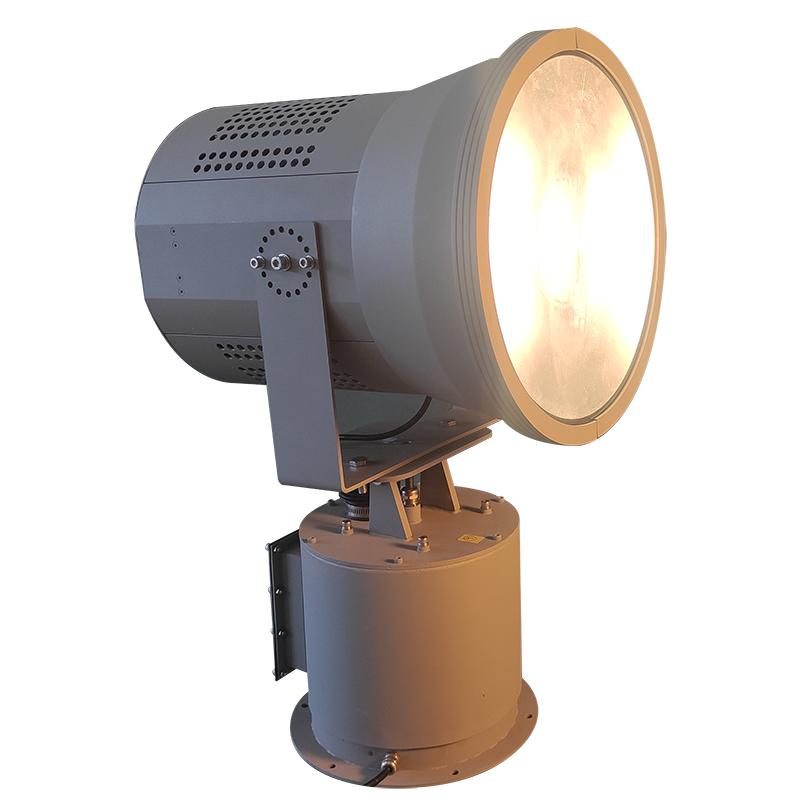

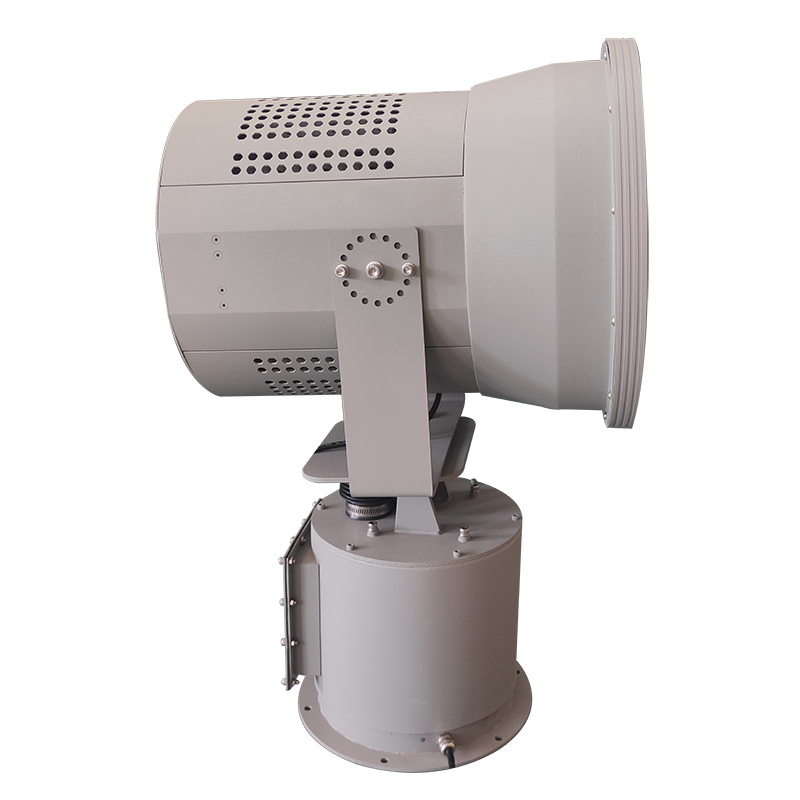

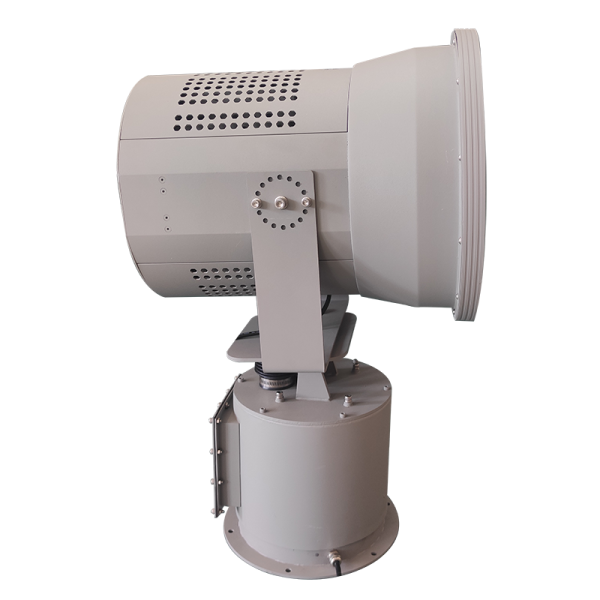

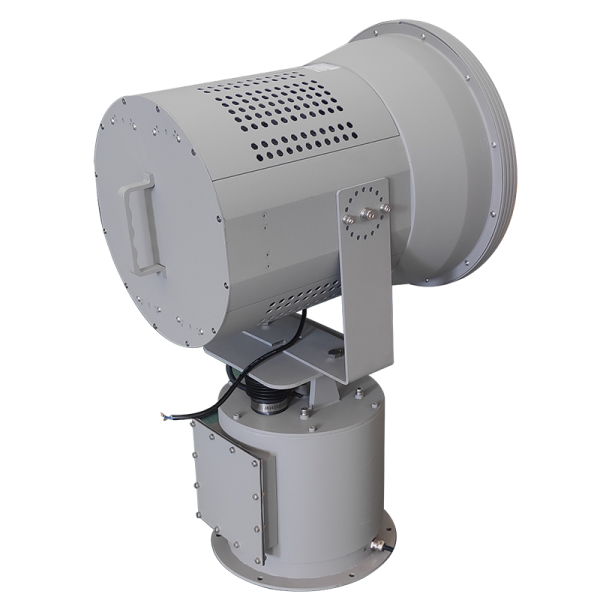

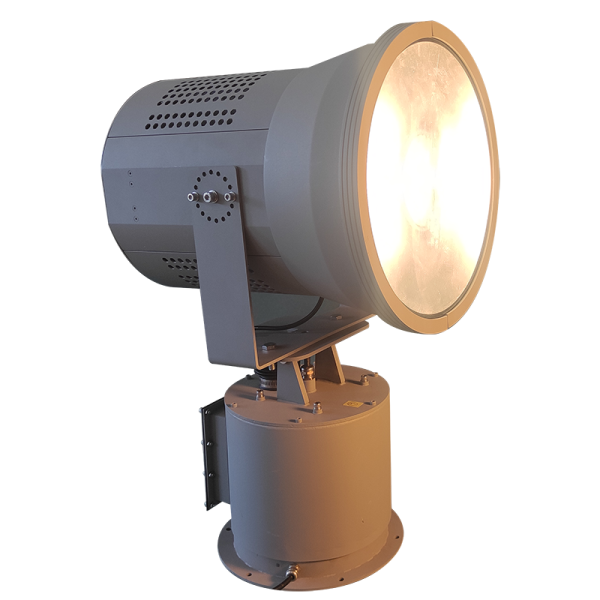

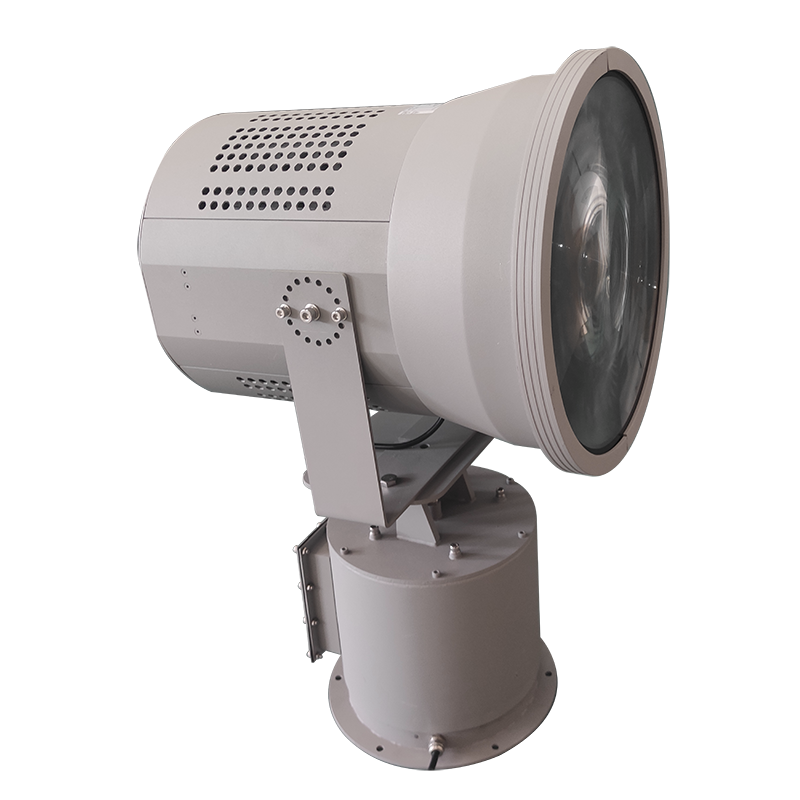

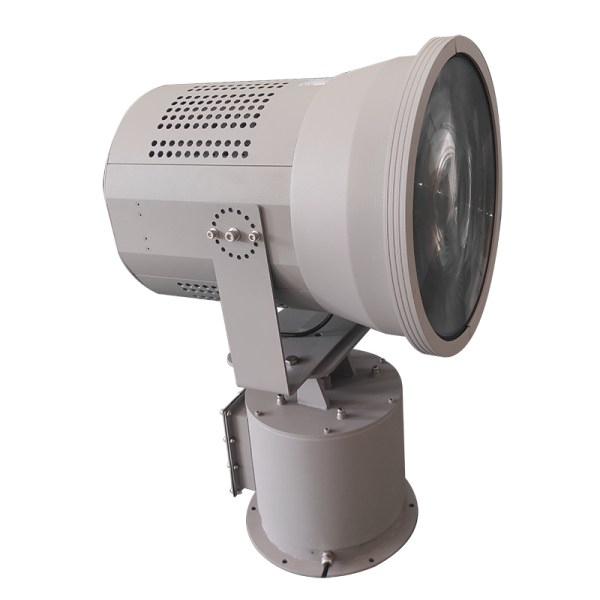

K-COB MARINE SEARCHLIGHTS 300W

• Exceptional Illumination: The K-COB LED Search Light distance and light effects are better than those of the traditional 1000W halogen tungsten lamp. It has an illumination distance of over 2000 meters, and the system assures high central light intensity and directivity.
• Energy Efficiency and Durability: This searchlight is a low energy consumption product that is environment friendly, built to withstand shock and corrosion, and is water resistant. Due to LM-80 certification and four patented technologies of an LED light source, the company provides a long service life that guarantees the lamps’ work in marine conditions.
• Remote Control Operation: The searchlight has superior remote control features. The lamp body tilts forward and backward to +/—30 degrees and rotates horizontally to 350 degrees automatically. This gives exact control of the directions of light to maximize the searchlight’s usage in different circumstances.

K-COB MARINE SEARCHLIGHTS (CCT:3000K)

PHOTOELECTRIC PARAMETER

Item No.	Power	Input Voltage	CCT	CRI	Central brightness(cd)	Lighting distance	Beam Angle
SC300	300W	AC90~305V	3000~6000K	70/80/90ra	2,500,000cd	2KM	6°
SC500	500W	AC90~305V	3000~6000K	70/80/90ra	4,500,000cd	3KM	4°



ILLUMINANCE LEVEL

Item No.	Lx 100m	Lx 500m	Lx 1000m	Lx 2000m	Lx 2500m	Lx 3000m
SC300	250	10	2.5	0.625	N/A	N/A
SC500	450	18	4.5	1.125	0.72	0.5



COMPARING WITH TRADITIONAL SEARCH LIGHT (TUNGSTEN,HALOGEN, XENON )

Item	Traditional Searchlights	K-COB led searchlights
Water-Proof	IP54	IP65
Start-Up	(Fully light up) More than 5minutes	Instant
Reliability	The bulb is very weak and easy to break	Reliable and durable,shock&corrosion resistance
Power Consumption	High	At least 50% energy saving than the traditional light source
UV	High UV, harmful to the human body	No UV



COMPARING WITH COMMON LED “SEARCHING LIGHT”

Item	Common led searchlights	K-COB LED searchlights
Distribution Method	By multiple PC lens/reflector. The outcoming beams are not able to be fully overlapping which results in stray light and weak central brightness, This design was for Architectural Lighting	The light is coming from a tiny single COB chip Distributed by the customized fresnel lens system, ensure the high central brightness.
Distance	The real lighting distance is always shorter than advertising due to the poor distribution. Most light energies are wasted	Guarantee the performance of long-distance(2km/3km) . Real customer testimony.
Wind resistance	High wind resistance	Low wind resistance, suitable for offshore works



COMPARING WITH PROFESSIONAL SEARCH LIGHT

Item	other Professional led searchlights	K-COB LED searchlights

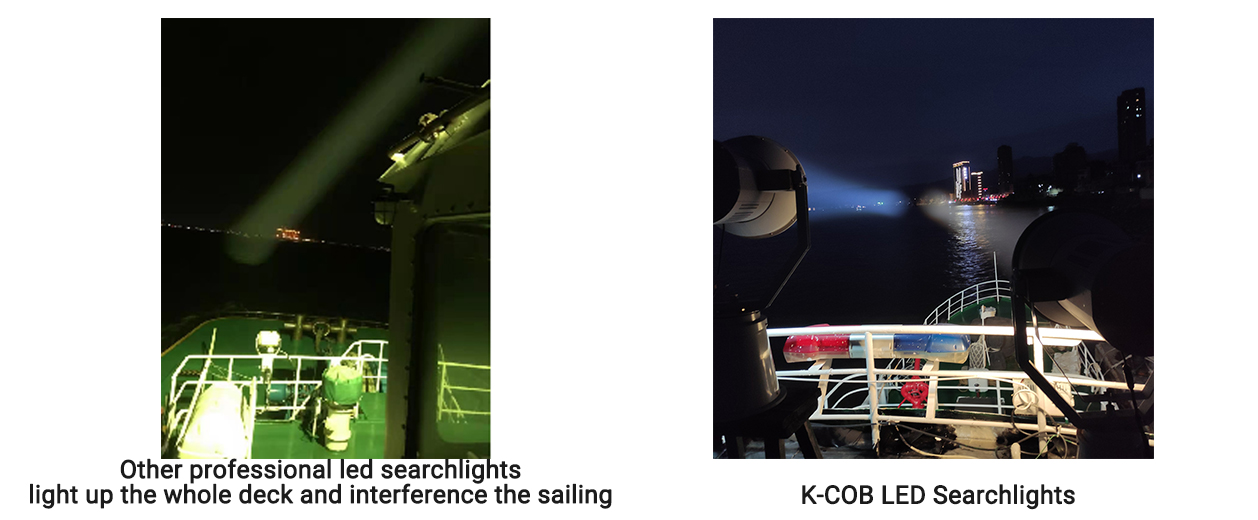

Using Experience	No strict control on the stray light. The light coming from the fixture will light up the whole deck and interference with the sailing	Most stray lights were eliminated.No more distractions for sailing/operation on deck
Light Spot Size	In the case of a very small beam angle provided by the fixture, if the central brightness is not enough. The small spot could not provide a good vision in the distance	Enough brightness is guaranteed within the declared distance

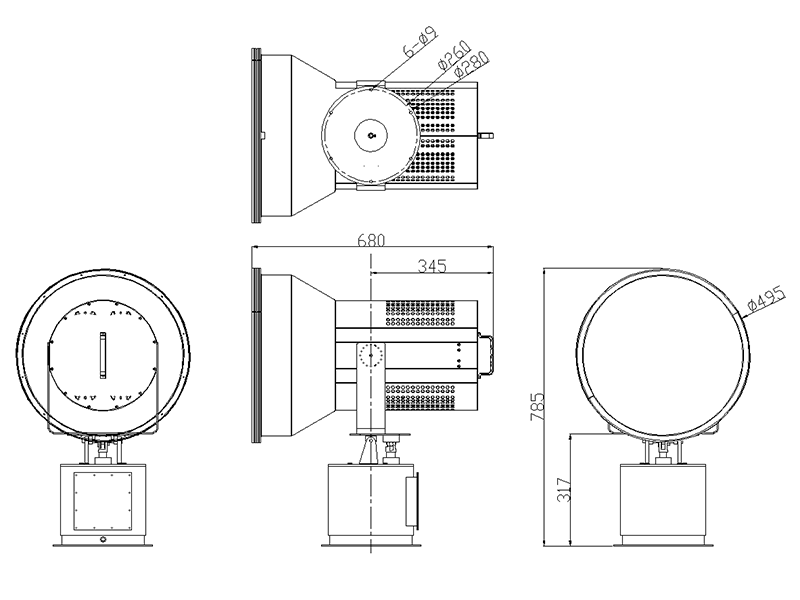

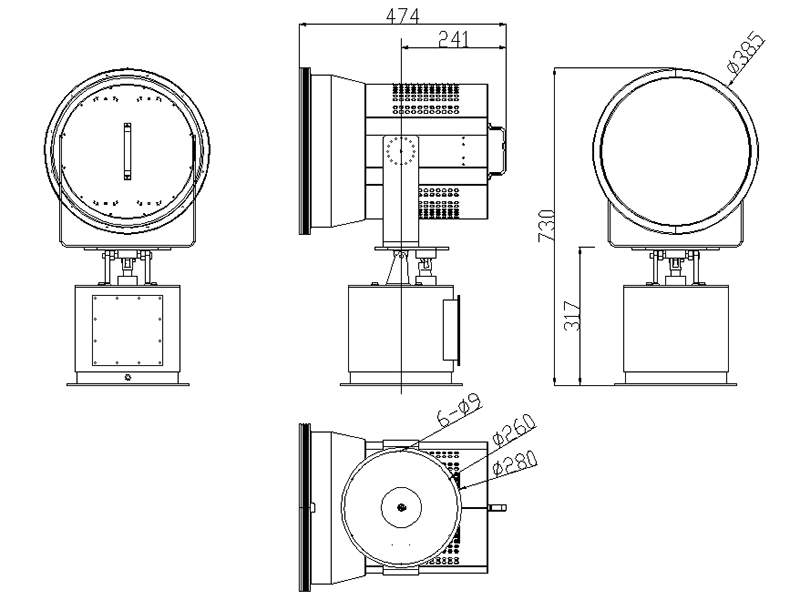

DIMENSION DRAWING

Model: SC300 Net Weight: 30kg	Model: SC500 Net Weight: 33kg



DIMENSION DRAWING

1. Strict management, production, and inspection processes to control the quality and avoid detailed mistakes

2. Design and produce ability

3. Strict inspection including material inspection, flaw detection, etc., and double-check is a must.

4. Advanced factory facilities ensure

5. Response to any inquiries within 24 HRS with a design or efficient solution from our engineer or tech supporter.

6. Provide professional customization service according to client’s requirements

7. On-time delivery, as we have a strict production schedule and professional follow-up process

8. Competitive price and professional service



We guarantee that our products meet the high-quality standards that are required under tough and demanding weather conditions. Our products are designed and manufactured for extreme environmental conditions. Welcome leave a message here, send us an inquiry and we’ll reply to you within 24hrs.
