The K-COB SPLC sport light Series is a series of high-power LED lighting products mainly for large sports facilities such as baseball fields, golf resorts, soccer fields/basketball courts/rugby pitches, etc. This avant-garde lighting fixture is mounted with a single 1600W Phosphor Ceramic COB light source, coupled with high dependent reflector as well as innovative dual heat pipe heatsink. SPLC sport light series are patented in China, Korea, Japan, and the USA; it is recommended for new stadiums with accurate lighting for players and fans or for retrofits, which reduces spillage to other areas.
High-Efficiency Lighting System: The SPLC series comes with a single 1600W Phosphor Ceramic COB combined with a high-efficiency aluminum reflector. This makes it offer precise and strong light output that is ideal for large stadium lighting use.
Advanced Heat Dissipation: The phosphor ceramic packaging which has been invented by K-COB Creates the second heat dissipation path. Performance is made consistent and it also extends the LED’s lifespan by having this structure that enhances heat conductivity by 30% and expands heatsinking space 40%.
Minimal Glare and Maximum Precision: Actually, in the SPLC’s single optical system are used 1200W COB, the mirror aluminum reflector, and three types of visors to provide light control during operation. This design has focused light on the target area so much that the stray light is minimized or almost eliminated to give as low as possible glare to HDTV broadcast.
Durable and Lightweight Design: The SPLC is made from lightweight (<18kg, including the bracket) 6063 aluminum, the same as mast sections, which means that the SPLC is easy to handle and install at heights. While the poles are made from stainless steel to resist rust, the product has an IP65 rating to withstand harsh weather conditions.
Old-School Aesthetic with Modern Performance: Available in a metal halide lamp style while being the latest LED series, the SPLC series has a classic touch. It’s a tribute to traditional sports lights and uses the newest Phosphor Ceramic COB as its light source.
The LEDs must be cooled to ensure the output will remain high and the lifespan of the LEDs will be longer. K-COB addresses this challenge with two key innovations: K-COB addresses this challenge with two key innovations:
Dual Heatsinking Channel: K-COB is covered with Phosphor Ceramic packaging, which enhances the secondary heat dissipation path, increases heat conductivity by 30%, and increases the heatsink per component by 40%.
Dual Heatpipe Heatsink: To cool the concentrated heat produced by the 1200W LED chip, the SPLC series is equipped with a dual-layer heatpipe heatsink. It also improves the heat radiating design to ensure the size and weight of the lamp are minimized while at the same time having the best-performing characteristics.
Hence, when choosing the lighting for the sports arena, it is necessary to take into consideration the visual demands of a particular kind of sport. For example, shooting ranges provide high target intensity and low general intensity, while large avenues where sports are held demand high intensity because of the considerable distance between contestants and the audience. Furthermore, the chosen lamps cannot emit any flickering that will interfere with the network’s operatingnetwork’s operation.
Traditionally, metal halide lamps were used because of their bright and white light, but they have also been replaced by LED lamps owing to problems like slow starting, high power demand, and low longevity. Contemporary LED systems such as the SPLC series provide accurate lighting control, low glare, and high energy efficacy, which has made contemporary sports lighting to be dominated by this type of lighting system.
These Two Techniques Are The Secretes Why SPLC Looks So Small&Delicated.
| Item No. | Power | Input Voltage | CCT | CRI | Lumen | Efficacy | Beam Angle |
| SPLC600 | 600W | AC180 ~ 528V | 2200~ 6500K | 70~90ra | 72000lm | 120~130lm/w | 15°,22°,25° |
| SPLC1000 | 1000W | AC180 ~ 528V | 2200~ 6500K | 70~90ra | 120000lm | 120~130lm/w | 15°,22°,25° |
| SPLC1200 | 1200W | AC180 ~ 528V | 2200~ 6500K | 70~90ra | 144000lm | 120~130lm/w | 15°,22°,25° |
 |
 |

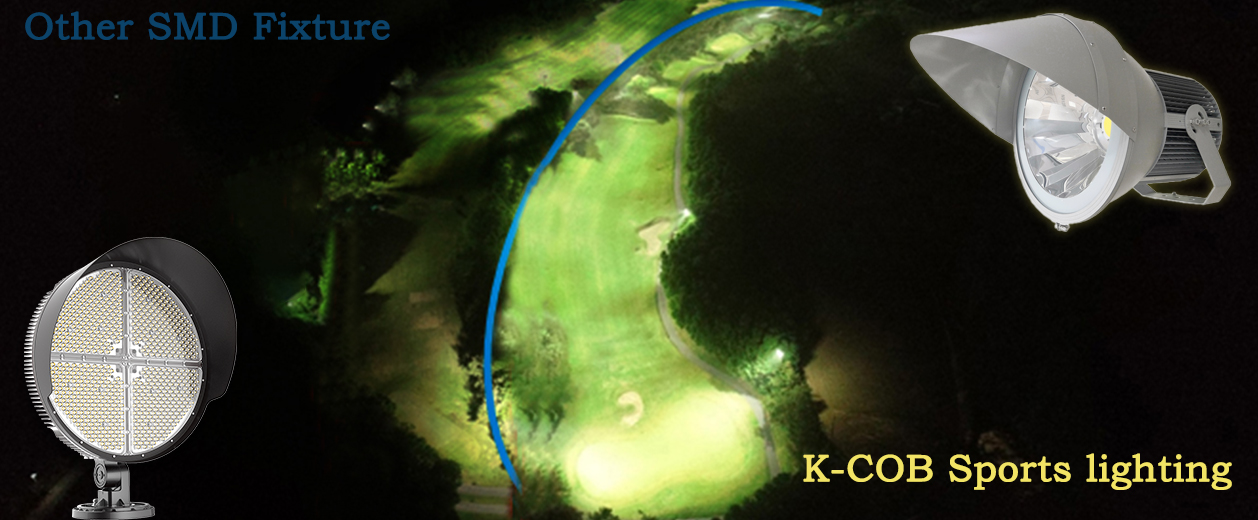

| SMD Array: LEDs are separated due to the difficulties of heat sinking and forced to through the inefficient plastic lens. |
Lens: Warp and crack after long-time working. Glare&dark spot is inevitable in actual case. |
 |
 |

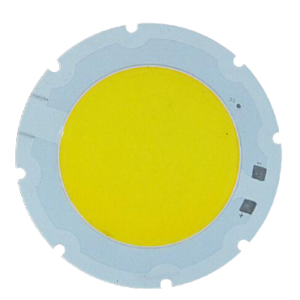

| Real Single Light Source: Exclusive phosphor ceramic COB with high light density LES φ 75mm for 1200w. LM80 certificated. |
Proven Reflector Technique: High efficient reflector by ALMECO, No glare and scatter outside of projected lighting area. |
How Much Does Sports Field Lighting Cost?
The general cost of installing LED sport light depends on several factors, including the quality of the LED sport light, the size of the stadium, and the amount of illuminance needed. K-COB is devoted to offering reasonable prices and individual approaches to any type of sports facility. The company may obtain pricing and specially designed lighting schemes upon request.
