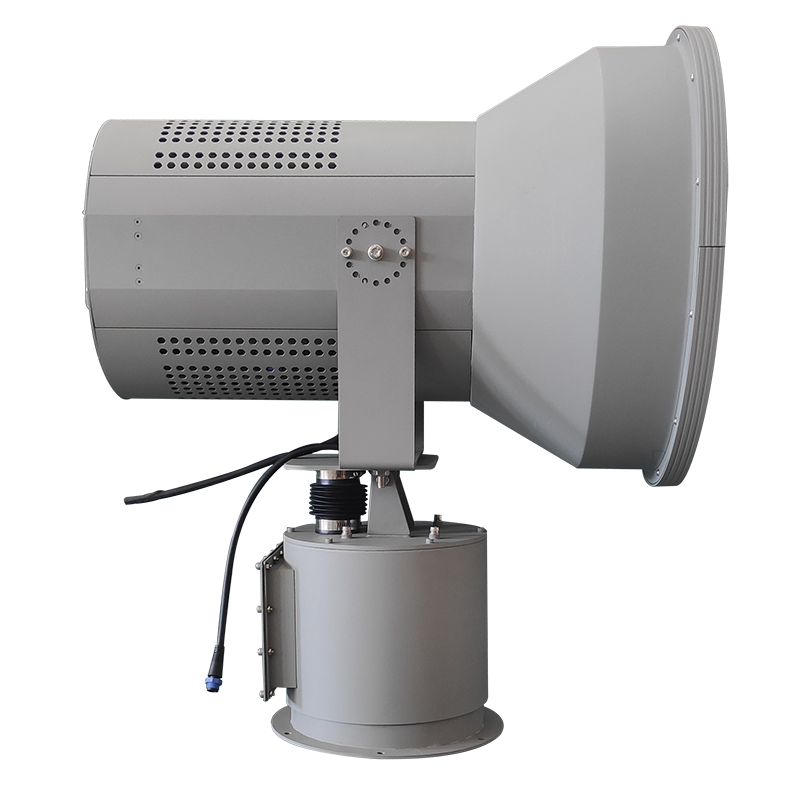

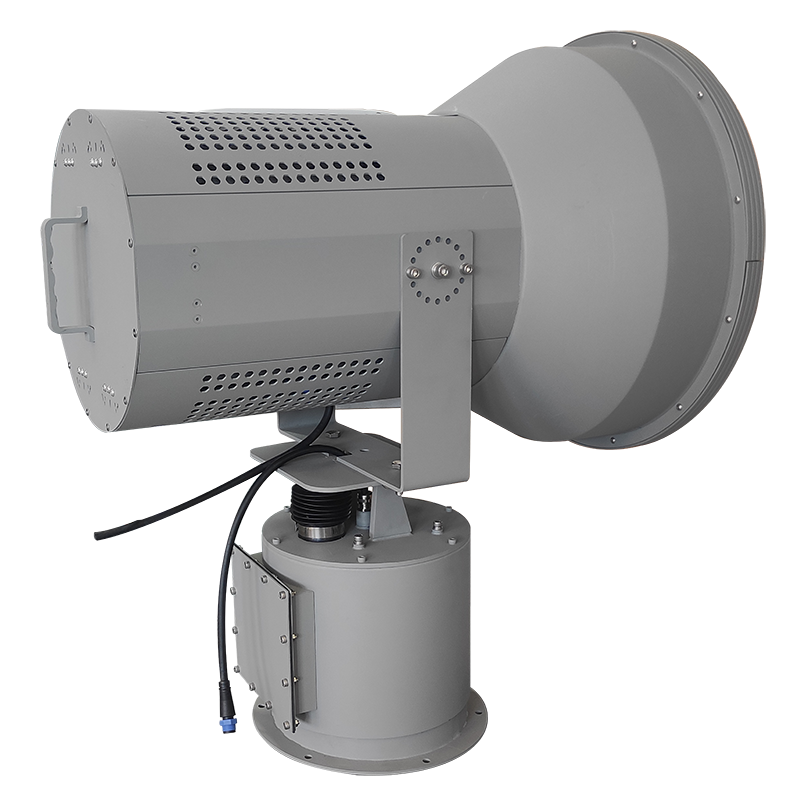

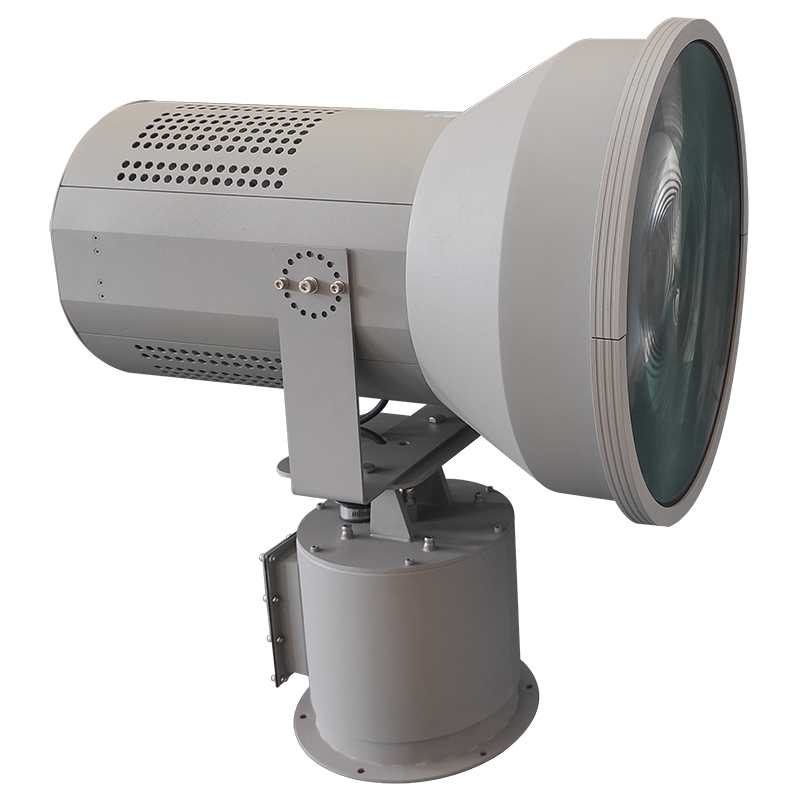

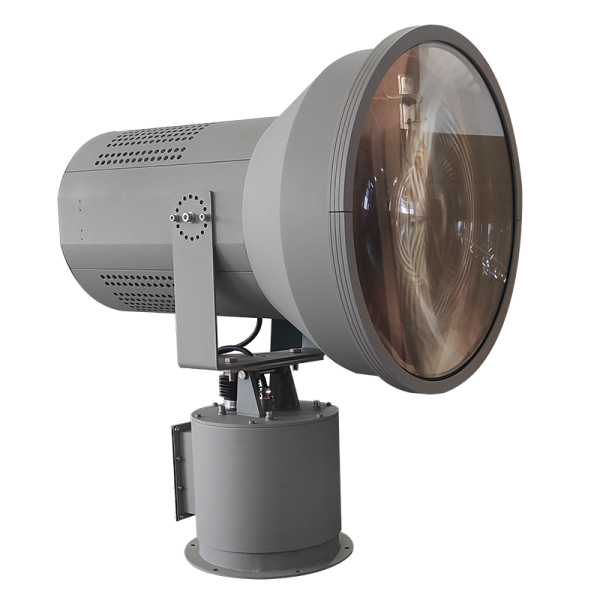

500W Led Search Lamp waterproof IP65 for boats and yachts

Exclusive phosphor ceramic COB light source, provide high central light intensity& directivity, guarantee the system performance;

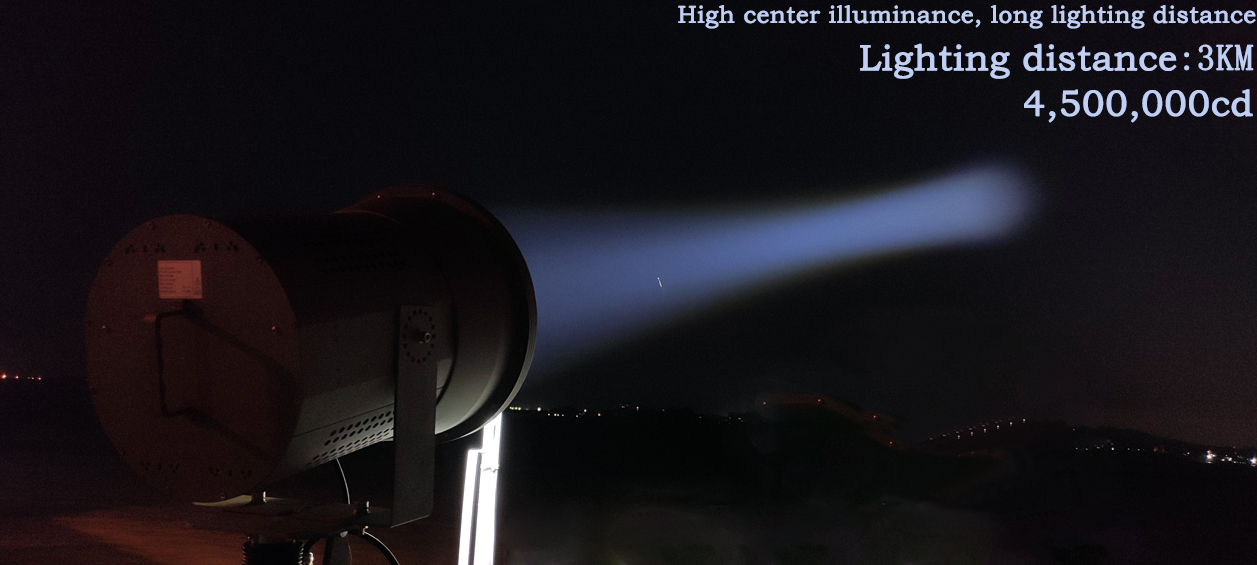

High center illuminance, long lighting distance;

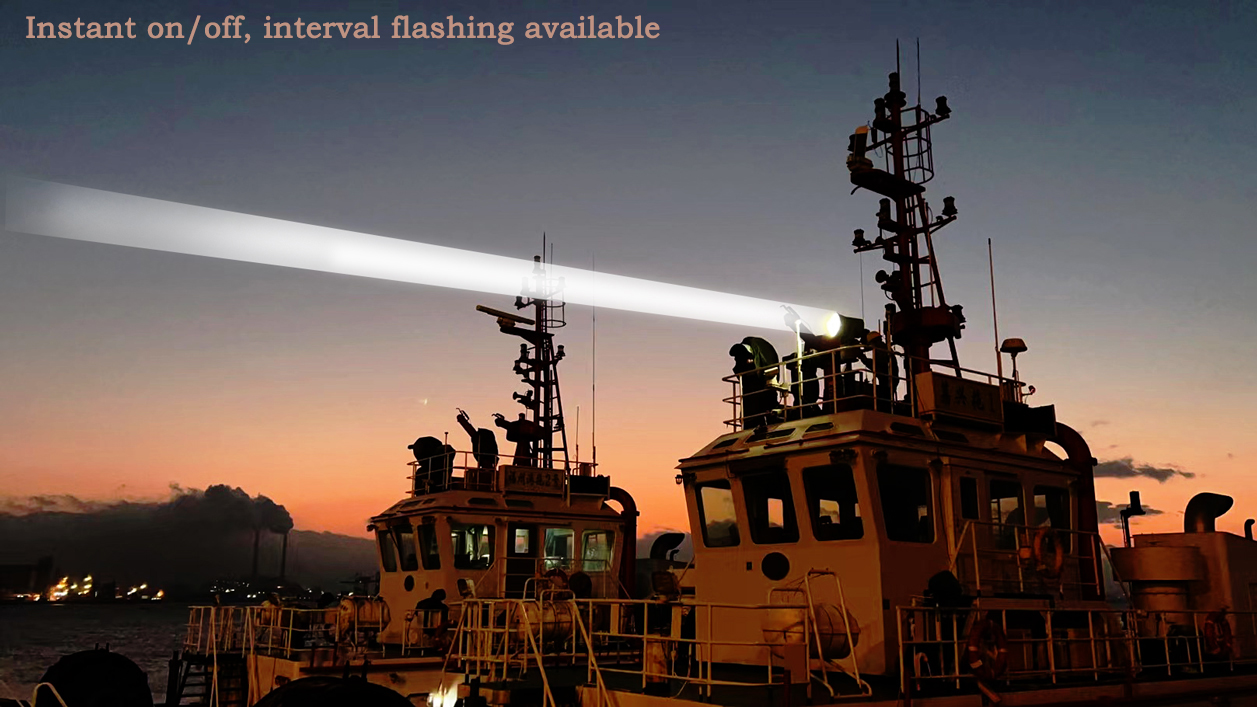

Instant on/off, interval flashing available;
Shock and corrosion resistance, suitable for offshore works;
Light decay less than 5% after 3 Years working;
Waterproof :IP65

Additional information

What to consider when choosing marine searchlights (halogen searchlights, led searchlights, xenon marine searchlights)?

The 500W LED Search Lamp Waterproof IP65 is an intense output lighting instrument customarily intended for maritime applications and features the best elements of sturdiness and luminance. This search lamp is created for rather severe operating environments, thus it is suitable not only for boats and boats but also for yachts. In terms of the light source, this lamp features a high capacity 500W LED light, offering the lamp powerful and directed lighting for nighttime navigation, mooring, or in case of an emergency. The IP65 waterproof ensures the prevention of water in a rush together with dust and weather conditions; hence, it can be used in marine stations.

When selecting a search lamp for your boat or yacht, there are several important factors to consider to ensure you choose the right product for your needs:

Durability and Build Quality: The marine environment is very tough due to water, sun or salt, dust, sand, and rough weather. That being said, this lamp’s IP65 waterproof rating means it is protected from these conditions, but the manufacturer’s choice of all the parts, including the materials that make up the lamp housing and the sturdiness of the fixing brackets, should not be overlooked.
Energy Efficiency: The search lamp that it offers is a 500W LED search lamp. It is highly illuminating but also energy-conserving, so it does not put so much strain on the vessel’s power supply. In this regard, the energy consumption should be considered regarding the brightness output to maximize the utilization of the onboard resources.
Ease of Installation and Operation: When selecting a search lamp, it is advisable to opt for lamps that are easy to fix and easy to use. Options such as the capability of remote control or variation in the support arm can improve convenience in operation; this provides control over the position and brightness of the lamp.

COMPARISON OF VARIOUS SEARCHLIGHT PARAMETERS

ContentList

Products

Warm-up time

Brightness&working distance

Glare

IP level

CCT

The average lifetime of lamps

Light decay, lifespan, maintenance

Lighting time

Safty problem

Operating temperature:

Weight(kg)

Traditional Tungsten

halogen searchlight 1200w

15-20 minutes restart slowly

Minimum B.A is 5°, low output brightness

Lighting distance: 2km

Low glare

IP56

3000k/5700k

1,000 hrs

Fast lumen decay and the bulb get damaged easily and frequent maintenance is required

Can’t be lit up for a long time(within 2 hours)

Risk of burns! Never touch the searchlight without protection while it is in use.The temperature of the casing can be up to180°C.

– 50°C – + 50°C

90kgs

k-Cob 500w led searchlights

Instant on/off

Beam angle: 5°,Low energy consumption.Brightness: 4,500,000cd

Lighting distance: 3.5km

Low glare

IP65

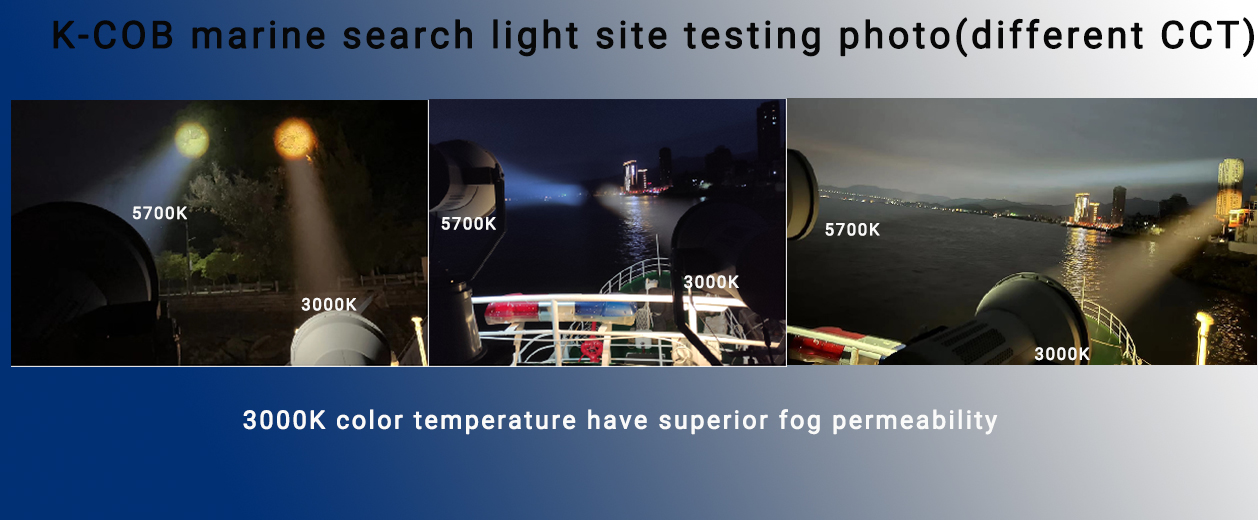

2200-6500K(Lower CCT Optional, with Strong fog permeability)

The average lifespan of searching lamps up to 30,000 hrs

Free maintenance

No limit

No UV, no high temperature

-44°to + 55°

33kgs

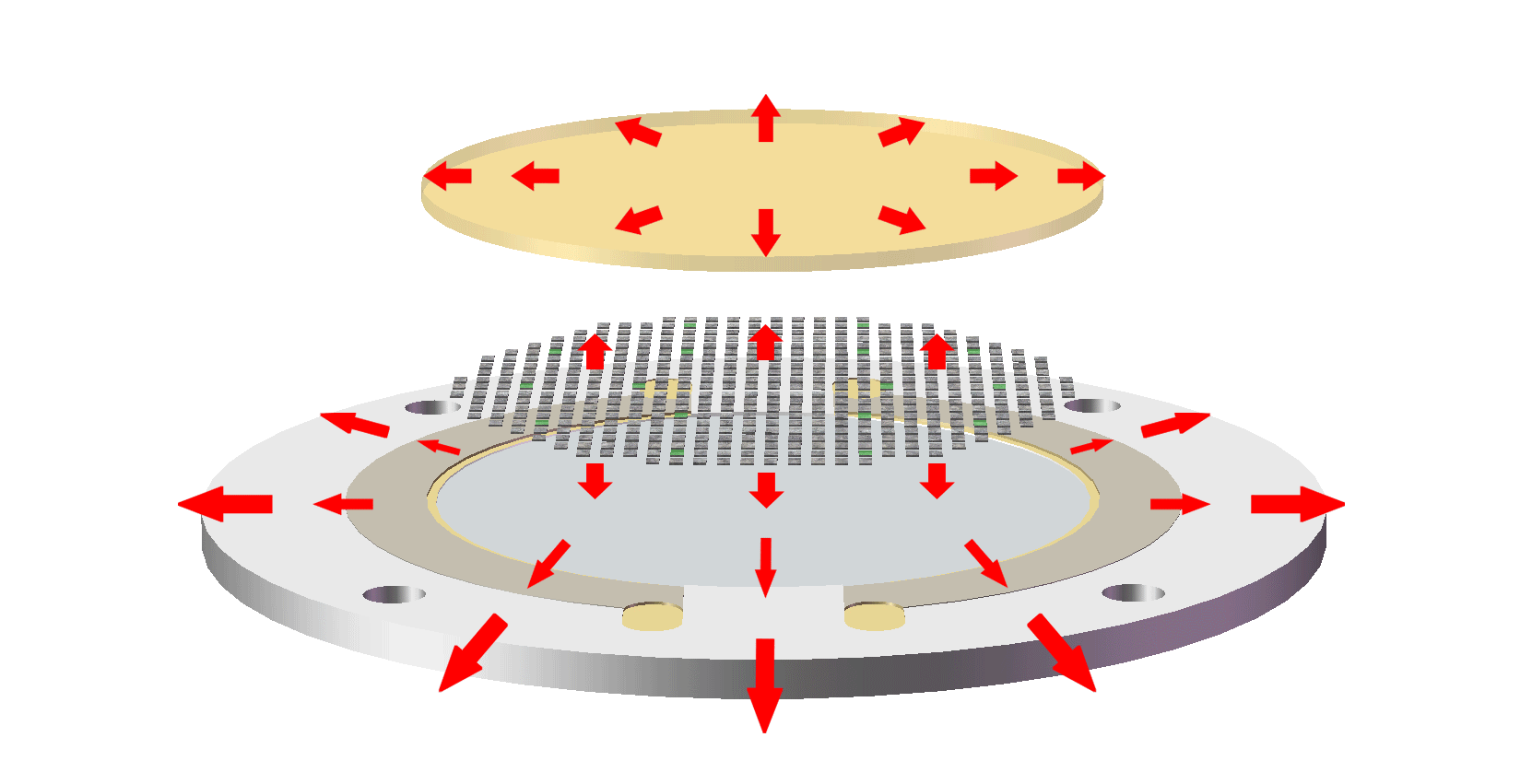

LIGHT SOURCE

Commercial Vessels: Naval searchlights are necessary for vessels at night and during sea search and rescue operations.
Offshore Platforms: These searchlights are also used on offshore platforms, where they are exposed to the worst that the sea can throw at them.
Dock Operations: In the dock area of the ports and the storage, the use of searchlights makes security and operation possible due to the need for additional lighting at night.

PHOTOELECTRIC PARAMETER

Item No.	Power	Input Voltage	CCT	CRI	Central brightness(cd)	Lighting distance	Beam Angle
SC300	300W	AC90~305V	3000~6000K	70/80/90ra	2,500,000cd	2KM	6°
SC500	500W	AC90~305V	3000~6000K	70/80/90ra	4,500,000cd	3KM	4°

ILLUMINANCE LEVEL

Item No.	Lx 100m	Lx 500m	Lx 1000m	Lx 2000m	Lx 2500m	Lx 3000m
SC300	250	10	2.5	0.625	N/A	N/A
SC500	450	18	4.5	1.125	0.72	0.5

PERFORMANCE

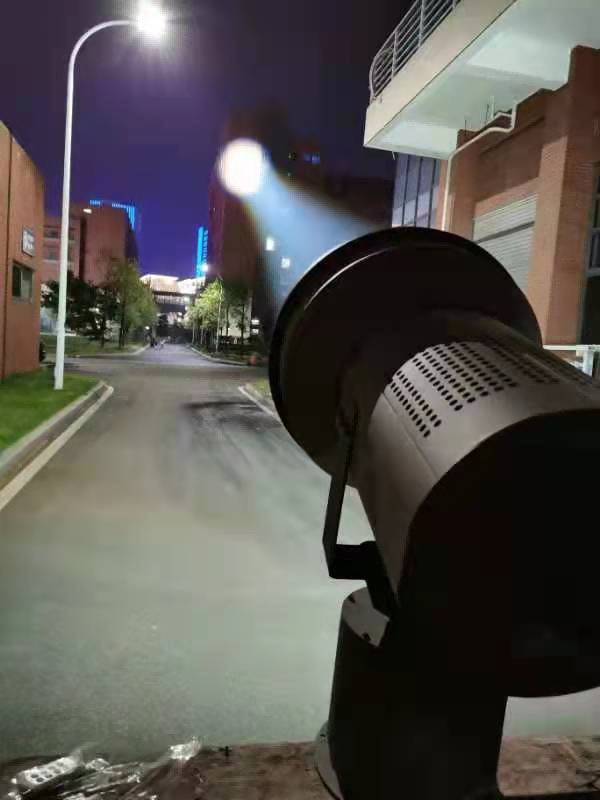

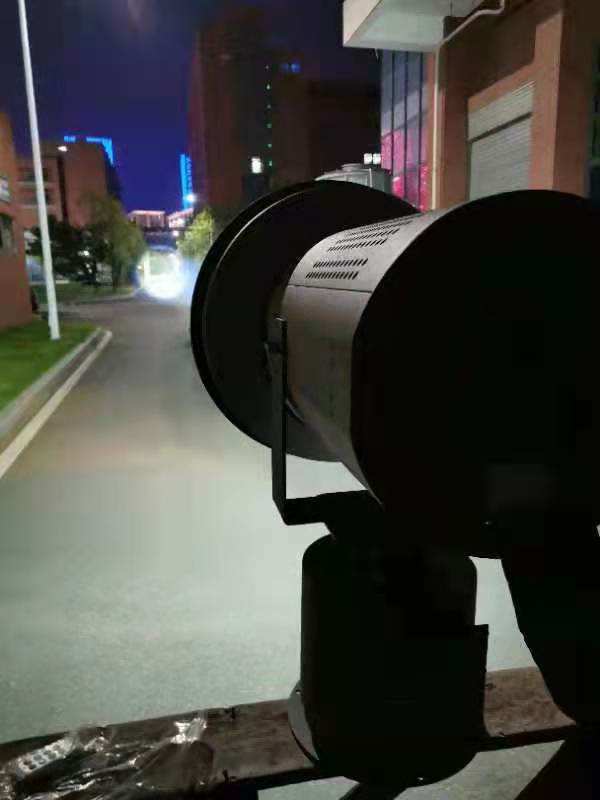

***The pics above showed the central illuminance of 500w searching light. The distance is 100m. The central illuminance is 407.85lx. (412-4.15), almost same as our calculation.
***
